Norco Ithaqua 1 2020

MTB Fatbike
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
26"
Suspension type
Rigid

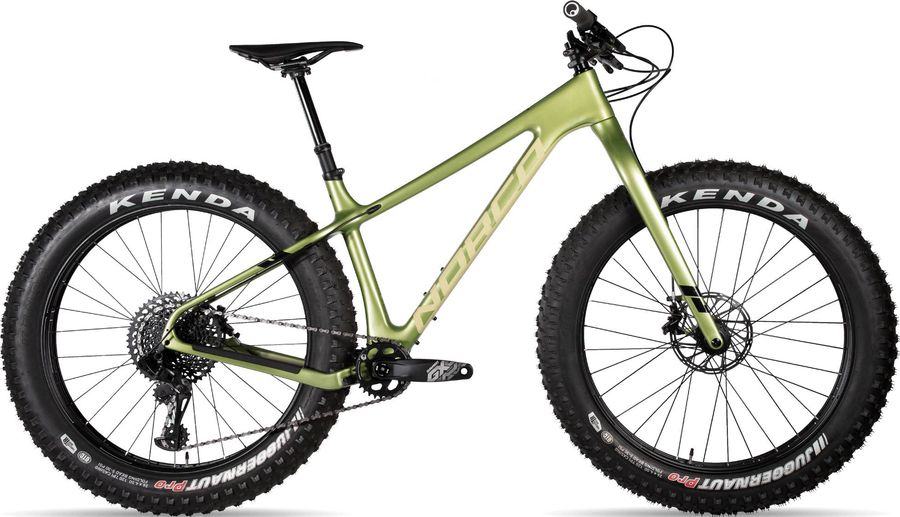

Norco Ithaqua 1 2020

About the Norco Ithaqua 1 2020

The Norco Ithaqua 1 2020 is a Rigid Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Norco Ithaqua 1 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30, Lock-On
Pedals
VP Nylon Flat Pedals, 9/16"
Components
Steam
Norco 6061 Alloy 60mm/35mm
Saddle
Norco SL Race w/Chromo Rails - Black
Headset
FSA Internal Headset
Seatpost
Crankbrothers Highline Dropper, 125mm (S) | 150mm (M/L/XL) Travel, 31.6mm
Handlebar
Norco 6061 DB Alloy 780mm
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM GX Eagle FAT5, 170mm (S/M) | 175mm (L/XL), 30T
Shifter
Rear: SRAM GX Eagle, 12 Speed, Front: -
Bottom bracket
SRAM DUB BB, PF121
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Front suspension
Norco Carbon Fat Fork, 15x150mm TA, 51mm Offset
Frame
Norco Ithaqua, Carbon, 12x197mm TA Dropouts
Wheels
Rims
HED Big Aluminum Deal, 32 Hole, 80mm Internal Width
Tires
Kenda Juggernaut Pro, 26x4.5", TR, Folding
Rear hub
DT Swiss 350, 12x197mm
Front hub
DT Swiss 350 150mm x 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
73,3º
72,9º
72,5º
72,1º
c
Top tube length
587,0
612,0
637,0
662,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
50,0
51,0
50,0
g
Trail
77,0
78,0
77,0
78,0
h
Wheelbase
1106,0
1129,0
1153,0
1176,0
i
Chainstay length
437,0
440,0
442,0
445,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
610,0
619,0
629,0
638,0
l
Reach
403,0
421,0
438,0
455,0
m
Standover height
724,0
733,0
742,0
747,0
x
Bottom bracket height
323,0
323,0
323,0
323,0
y
Front center
676,0
697,0
717,0
738,0
