Norco Ithaqua SL 2018

MTB Fatbike
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
26"
Suspension type
Rigid

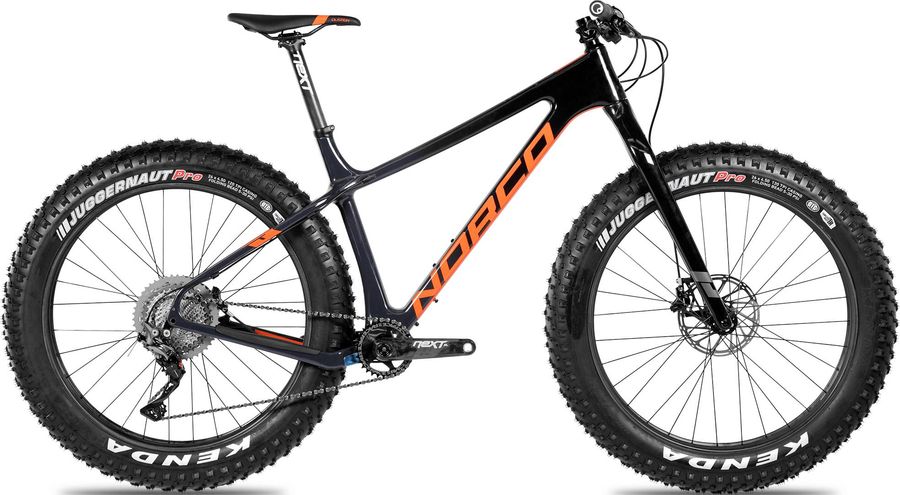

Norco Ithaqua SL 2018

About the Norco Ithaqua SL 2018

The Norco Ithaqua SL 2018 is a Rigid Fatbike Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Norco Ithaqua SL 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30 Lock On Grip
Components
Steam
Race Face Turbine 35mm/60mm
Saddle
SDG Duster RL
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Race Face Next SL 31.6
Handlebar
Race Face Next 35 Carbon 760mm/10mm Rise
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
Race Face Next SL 30T
Shifter
Shimano XTR 9000 11spd
Bottom bracket
Race Face BB92 Fat Bike
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X11
Frameset
Front suspension
Norco Carbon 150x15 Fat Fork
Frame
Ithaqua Carbon Fat Frame 197x12
Wheels
Tires
Kenda Juggernaut Pro 26 x 4.5 Tubeless
Rear hub
HED Big Deal Carbon w/Brickhouse 197mmx12mm
Front hub
HED Big Deal Carbon w/Brickhouse 150mmx15mm

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
73,3º
72,9º
72,5º
72,1º
c
Top tube length
587,0
612,0
637,0
662,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
50,0
51,0
50,0
g
Trail
77,0
78,0
77,0
78,0
h
Wheelbase
1106,0
1129,0
1153,0
1176,0
i
Chainstay length
437,0
440,0
442,0
445,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
610,0
619,0
629,0
638,0
l
Reach
403,0
421,0
438,0
455,0
m
Standover height
724,0
733,0
742,0
747,0
x
Bottom bracket height
323,0
323,0
323,0
323,0
y
Front center
676,0
697,0
717,0
738,0
