Norco Optic C1 2021

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
125mm

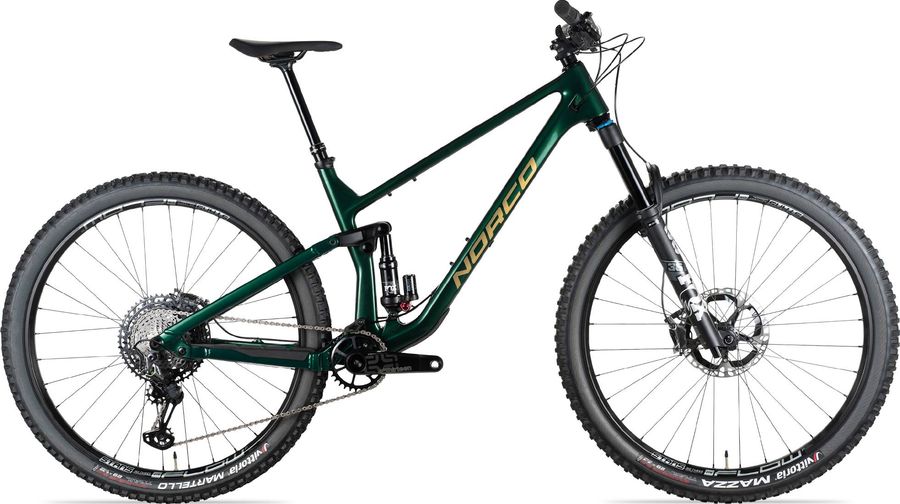

Norco Optic C1 2021

About the Norco Optic C1 2021

The Norco Optic C1 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Optic C1 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
6061 Alloy, 45mm Length, 35mm Clamp
Saddle
Fizik Alpaca Terra, Wingflex
Headset
FSA Internal Sealed Bearing
Seatpost
X-Fusion Manic dropper, 31.6mm, 125mm (s), 150mm (M,L), 170mm (XL)
Handlebar
One Up Carbon, 800mm, 20mm Rise
Discs
Shimano XTR MT900 Freeza, 203mm
Brake lever
Shimano XTR
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
e*thirteen TRS Race Carbon, 32T, 170mm
Shifter
Shimano XTR M9100 I-Spec
Bottom bracket
e*thirteen BB92
Rear derailleur
Shimano XTR RD-M9100-GS 237 g GS 12s
Average weight (g)
237
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M9100-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
35T
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Frameset
Frame
Carbon Front Triangle/Aluminum Rear, 125mm Travel, Ride Aligned™
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
Stans Flow S1 29", 32H
Tires
Vittoria Mazza 2.4" Trail G2.0
Rear hub
Shimano XT FH-8110-B, 12x148mm Boost, Center Lock
Front hub
Shimano XT HB-8110-B, 15x110mm Boost, Center Lock

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
415,0
445,0
485,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
567,0
600,0
632,0
664,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
-
f
Rake
42,0
42,0
42,0
42,0
g
Trail
129,0
129,0
129,0
129,0
h
Wheelbase
1152,0
1191,0
1230,0
1270,0
i
Chainstay length
420,0
425,0
430,0
435,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
606,0
615,0
624,0
633,0
l
Reach
415,0
445,0
475,0
505,0
m
Standover height
659,0
675,0
693,0
174,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
735,0
769,0
803,0
838,0
