Norco Optic C2 Shimano 2021

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
125mm

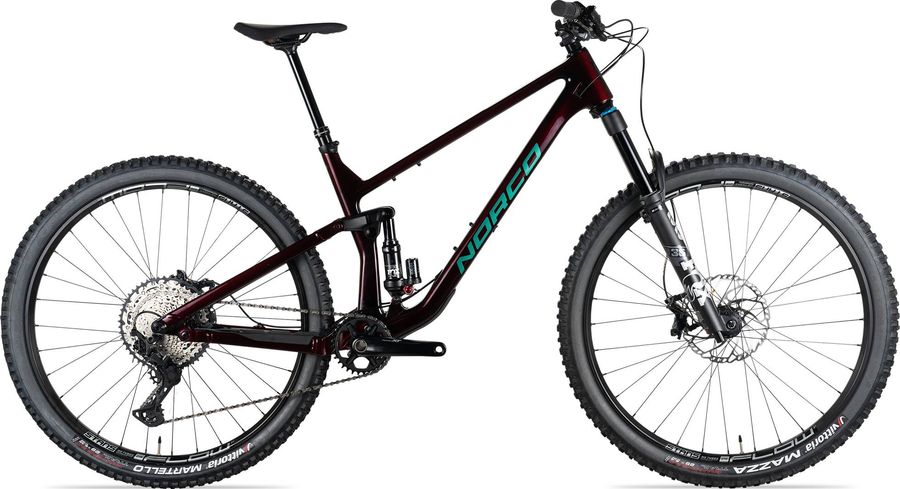

Norco Optic C2 Shimano 2021

About the Norco Optic C2 Shimano 2021

The Norco Optic C2 Shimano 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Optic C2 Shimano 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
DMR Deathgrip
Components
Steam
Norco 6061 Alloy, 45mm Length, 35mm Clamp
Headset
FSA Internal Sealed Bearing
Seatpost
X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)
Handlebar
TranzX Butted 6061 Alloy, 780mm, 20mm Rise
Discs
Shimano SM-RT70 Ice Tech, 203mm
Brake lever
Shimano XT BR-M8020
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
Praxis Girder Carbon M30, 32T, 170mm
Shifter
Shimano XT Sl-M8100 I-Spec
Bottom bracket
Praxis M30 BB92
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Carbon Front Triangle/Aluminum Rear, 125mm Travel, Ride Aligned™
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
Stans Flow S1 29", 32H
Tires
Vittoria Mazza 2.4" Trail G2.0
Rear hub
Shimano XT FH-8110-B 12x148mm Boost, 32H, Micro Spline, Center Lock
Front hub
Shimano XT HB-8110-B, 15x110mm Boost, Center Lock

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
415,0
445,0
485,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
567,0
600,0
632,0
664,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
129,0
129,0
129,0
129,0
h
Wheelbase
1152,0
1191,0
1230,0
1270,0
i
Chainstay length
420,0
425,0
430,0
435,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
606,0
615,0
624,0
633,0
l
Reach
415,0
445,0
475,0
505,0
m
Standover height
659,0
675,0
693,0
714,0
x
Bottom bracket height
-
337,0
337,0
337,0
y
Front center
735,0
769,0
803,0
838,0
