Norco Optic C2 SRAM 2021

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
125mm

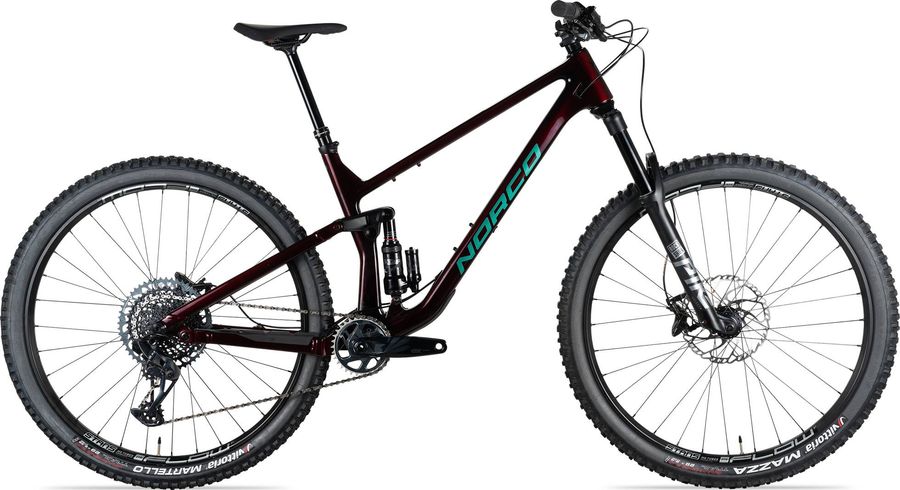

Norco Optic C2 SRAM 2021

About the Norco Optic C2 SRAM 2021

The Norco Optic C2 SRAM 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Optic C2 SRAM 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
DMR Deathgrip
Components
Steam
6061 Alloy 45mm Length, 35mm Clamp
Saddle
Fizik Alpaca Terra, Wingflex
Headset
FSA Internal Sealed Bearing
Seatpost
X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)
Handlebar
TranzX Butted 6061 Alloy, 780mm, 20mm Rise
Discs
Shimano SM-RT66 203mm, Metallic
Brake lever
Shimano Deore BR-MT520
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
SRAM GX Eagle DUB Lunar, 32T, 170mm
Shifter
SRAM GX Eagle 12spd
Bottom bracket
SRAM DUB PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Front Triangle/Aluminum Rear, 125mm Travel, Ride Aligned™
Rear suspension
RockShox Super Deluxe Ultimate DH
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-ULDH-B2
Name
Super Deluxe Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
485g (250x75, 2 tokens, MM tune, standard/standard)
Front suspension
RockShox Pike Select+ DebonAir 1832 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SELP-B3
Name
Pike Select+
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1832
Wheel size
27.5", 29"
Wheels
Rims
Stans Flow S1 29", 32H
Tires
Vittoria Mazza 2.4" Trail G2.0
Rear hub
DT Swiss 350 12x148mm Boost, XD, 6 Bolt
Front hub
DT Swiss 350 15x110mm Boost, 6 Bolt

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
415,0
445,0
485,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
600,0
600,0
632,0
664,0
d
Head tube length
110,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
125,0
129,0
128,0
129,0
h
Wheelbase
1191,0
1191,0
1230,0
1270,0
i
Chainstay length
420,0
425,0
430,0
435,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
606,0
615,0
624,0
633,0
l
Reach
415,0
445,0
475,0
505,0
m
Standover height
675,0
675,0
693,0
714,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
774,0
769,0
803,0
838,0
