Norco Optic C2 Women 27.5 2019

Women's Bike
MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
110mm

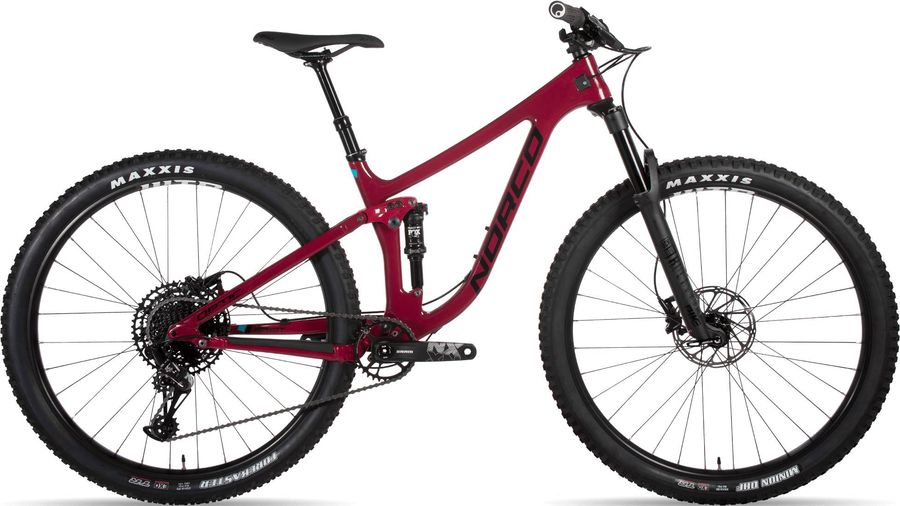

Norco Optic C2 Women 27.5 2019

About the Norco Optic C2 Women 27.5 2019

The Norco Optic C2 Women 27.5 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Optic C2 Women 27.5 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 Slim
Components
Steam
Alloy 6061 35mm bar bore, 50mm 29, 60mm 650B
Saddle
SDG Allure Women’s saddle with steel rails
Headset
FSA No 42E/ACB 1.5” to 1-1/8” w/black FSA logos
Seatpost
TranzX YSP12JL Stealth Dropper, 80mm (XS) | 100mm (S) | 125mm (M) Travel, 31.6mm, 1x Lever
Handlebar
Norco 20 mm rise 6061 800mm x 20mm rise, 35mm bar bore
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM NX Eagle, 170mm (XS/S) | 175mm (M), 32T
Shifter
Rear: SRAM NX Eagle, 12 Speed, Front: -
Bottom bracket
SRAM DUB BB, PF92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Optic, Carbon Front Triangle, Aluminum Chainstay, Seat Stay and Linkarm, 110mm (29") | 120mm (27.5") Travel, Boost 12x148mm TA Dropouts
Rear suspension
Fox Float DPS Performance Elite EVOL
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
WTB ST i29 TCS 2.0, 32 Hole, 29mm Internal Width
Tires
Maxxis Minion DHF, 2.3", EXO/TR, Folding
Rear hub
DT Swiss 370, Boost 12x148mm
Front hub
Novatec 110x15 sealed bearing disc hub

Geometry

Size XS SM
a
Seat tube length
380,0
410,0
b
Seat tube angle
75,2º
74,9º
c
Top tube length
532,0
561,0
d
Head tube length
97,0
107,0
e
Head tube angle
67,5º
67,5º
f
Rake
44,0
43,0
g
Trail
107,0
109,0
h
Wheelbase
1081,0
1112,0
i
Chainstay length
417,0
422,0
j
Bottom bracket drop
14,0
14,0
k
Stack height
575,0
584,0
l
Reach
380,0
403,0
m
Standover height
767,0
762,0
x
Bottom bracket height
338,0
338,0
y
Front center
664,0
690,0
