Norco Optic C3 2021

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
125mm

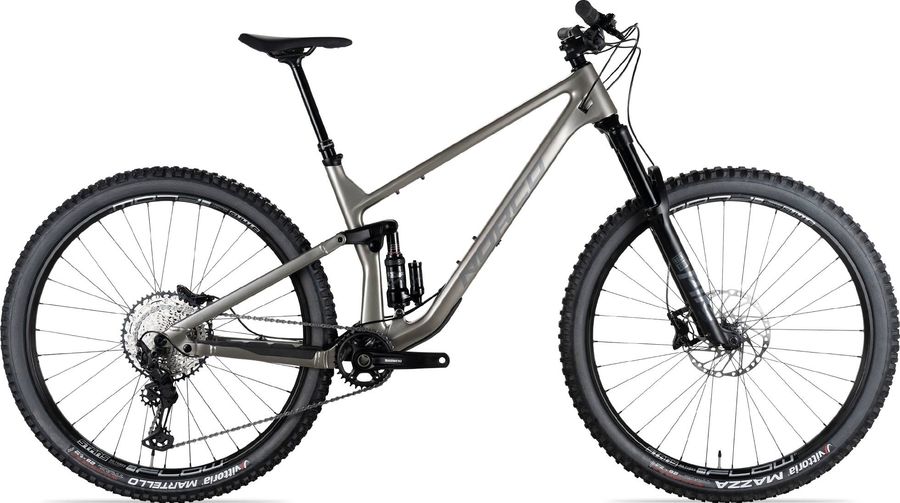

Norco Optic C3 2021

About the Norco Optic C3 2021

The Norco Optic C3 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Optic C3 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
DMR Deathgrip
Components
Steam
6061 Alloy, 45mm Length, 35mm Clamp
Saddle
Fizik Alpaca Terra, Wingflex
Headset
FSA Internal Sealed Bearing
Seatpost
X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)
Handlebar
TranzX Butted 6061 Alloy, 780mm, 20mm Rise
Discs
Shimano SM-RT64 203mm, Metallic
Brake lever
Shimano BR-MT420
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano FC-MT6100-1, 32T, 170mm
Shifter
Shimano SLX SL-M7100-IR I-Spec EV
Bottom bracket
Shimano BB-MT500 PF92
Chain tensioner
Add GW or e*thirteen
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Carbon Front Triangle/Aluminum Rear, 125mm Travel, Ride Aligned™
Rear suspension
RockShox Super Deluxe Ultimate DH
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-ULDH-B2
Name
Super Deluxe Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
485g (250x75, 2 tokens, MM tune, standard/standard)
Front suspension
RockShox Pike Select+ DebonAir 1832 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SELP-B3
Name
Pike Select+
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1832
Wheel size
27.5", 29"
Wheels
Rims
Stans Flow S1 29", 32H
Tires
Vittoria Mazza 2.4" Trail G2.0
Rear hub
Shimano FH-MT510-B, 12x148mm Boost, Micro Spline, Center Lock
Front hub
Shimano HB-MT400-B, 15x110mm Boost, Center Lock

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
415,0
445,0
485,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
567,0
600,0
632,0
664,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
129,0
129,0
129,0
129,0
h
Wheelbase
1152,0
1191,0
1230,0
1270,0
i
Chainstay length
420,0
425,0
430,0
435,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
606,0
615,0
624,0
633,0
l
Reach
415,0
445,0
475,0
505,0
m
Standover height
659,0
675,0
693,0
714,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
735,0
769,0
803,0
838,0
