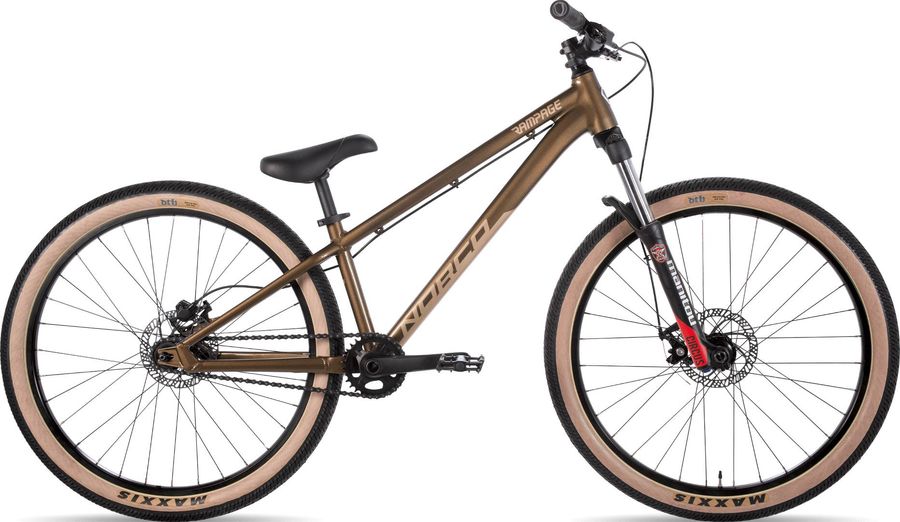

Norco Rampage 1 2020
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm
About the Norco Rampage 1 2020
The Norco Rampage 1 2020 is a Hardtail Mountain Bike with a alloy frame.
Specifications
|
Grip
|
Norco, small flange
|
|---|---|
|
Pedals
|
VP 539 BMX flat resin, metal pins
|
|
Steam
|
Alloy 45mm, 31.8mm bore, 4 bolt front clamp
|
|---|---|
|
Saddle
|
Norco Pivotal stealth II, thick padding
|
|
Headset
|
FSA No 42 ACB
|
|
Seatpost
|
6061 alloy Kue Q Pivotal stealth II, 27.2 x 200mm
|
|
Handlebar
|
Norco 6061 DB, 780mm, 25mm rise
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
2 piece Samox, 170mm
|
|---|---|
|
Cassette
|
Included with hub
|
|
Chain
|
KMC Z1
|
|
Frame
|
Aluminum X6 DJ 26"
|
|---|---|
|
Front suspension
|
Manitou Circus Comp
|
|
Rims
|
Alex MUS 30, 26"
|
|---|---|
|
Tires
|
Maxxis DTH folding, 26x 2.3" Skinwall
|
|
Rear hub
|
Novatec alloy sealed bearing 32H, w/14T single speed cassette
|
|
Front hub
|
Novatec 15x100mm, sealed bearing
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
300,0
|
300,0
|
300,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
553,0
|
579,0
|
606,0
|
|
d
Head tube length
|
110,0
|
115,0
|
120,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
40,0
|
40,0
|
40,0
|
|
g
Trail
|
88,0
|
88,0
|
88,0
|
|
h
Wheelbase
|
1020,0
|
1047,0
|
1074,0
|
|
i
Chainstay length
|
391,0
|
391,0
|
391,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
561,0
|
566,0
|
571,0
|
|
l
Reach
|
382,0
|
407,0
|
432,0
|
|
m
Standover height
|
583,0
|
578,0
|
579,0
|
|
x
Bottom bracket height
|
322,0
|
322,0
|
322,0
|
|
y
Front center
|
630,0
|
657,0
|
684,0
|
