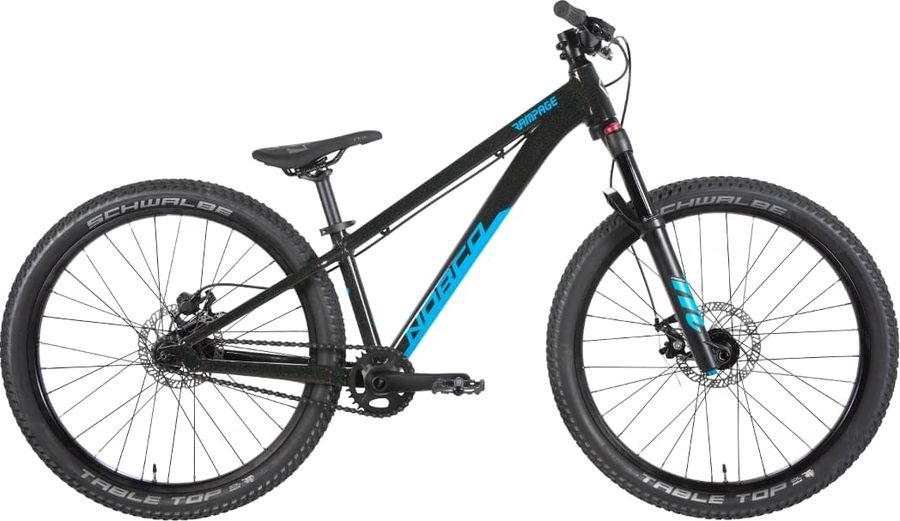

Norco Rampage 1 24 2021
Frame material
Alloy
Wheel size
24"
Suspension type
Hardtail
Front travel
100mm
About the Norco Rampage 1 24 2021
The Norco Rampage 1 24 2021 is a Hardtail Mountain Bike with a alloy frame.
Specifications
|
Grip
|
SDG Jr.
|
|---|---|
|
Pedals
|
SDG Composite Jr Flat with steel pins
|
|
Steam
|
Alloy 35mm
|
|---|---|
|
Saddle
|
SDG Fly Jr
|
|
Headset
|
FSA No 42 ACB
|
|
Seatpost
|
Alloy 27.2mm
|
|
Handlebar
|
SDG Kids 19mm Alloy, 640mm, 25mm rise, 31.8mm bar bore
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
2 Piece Samox, 140mm
|
|---|---|
|
Chain
|
KMC Z1
|
|
Frame
|
Aluminum DJ 24"
|
|---|---|
|
Front suspension
|
Manitou Machete
|
|
Rims
|
Alex MUS 30, 24"
|
|---|---|
|
Tires
|
Schwalbe Table Top, 24x2.25"
|
|
Rear hub
|
Novatec alloy sealed bearing, 14T single speed cassette
|
|
Front hub
|
Novatec 15x100mm sealed bearing
|
Geometry
| Size | 24" |
|---|---|
|
a
Seat tube length
|
290,0
|
|
b
Seat tube angle
|
73,0º
|
|
c
Top tube length
|
518,0
|
|
d
Head tube length
|
100,0
|
|
e
Head tube angle
|
69,0º
|
|
f
Rake
|
40,0
|
|
g
Trail
|
77,0
|
|
h
Wheelbase
|
952,0
|
|
i
Chainstay length
|
362,0
|
|
j
Bottom bracket drop
|
50,0
|
|
k
Stack height
|
551,0
|
|
l
Reach
|
347,0
|
|
m
Standover height
|
514,0
|
|
x
Bottom bracket height
|
263,0
|
|
y
Front center
|
595,0
|
