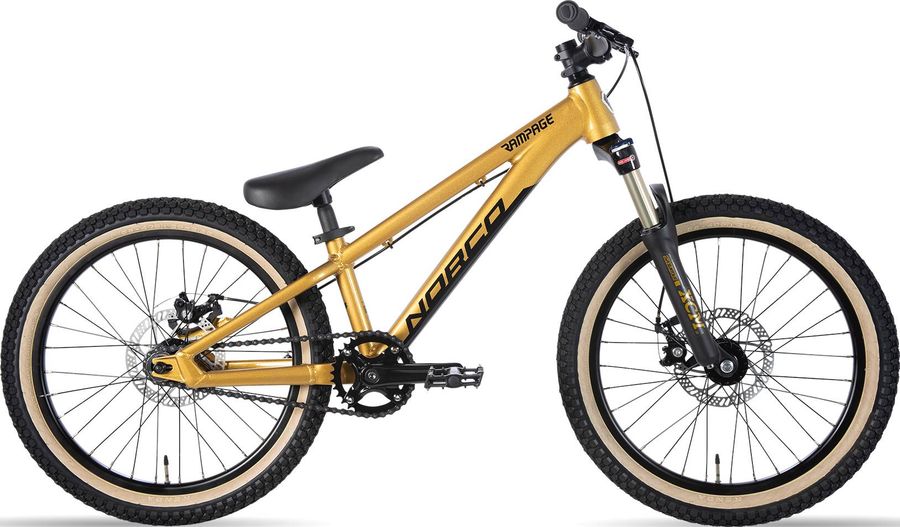

Norco Rampage 2 20 2020
Frame material
Alloy
Wheel size
20"
Suspension type
Hardtail
Front travel
80mm
About the Norco Rampage 2 20 2020
The Norco Rampage 2 20 2020 is a Hardtail Mountain Bike with a alloy frame.
Specifications
|
Grip
|
Norco Jr.115mm, lock on
|
|---|---|
|
Pedals
|
VP Jr Flat with steel pins
|
|
Steam
|
Alloy 35mm
|
|---|---|
|
Saddle
|
Norco One Piece
|
|
Headset
|
FSA No 42 ACB
|
|
Seatpost
|
Integrated w/saddle
|
|
Handlebar
|
Norco 6061 DB alloy 640mm, 25mm rise
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
JY 140mm 3 piece direct mount narrow/wide 30T ring
|
|---|---|
|
Bottom bracket
|
Square taper, threaded
|
|
Chain
|
KMC Z1
|
|
Frame
|
Aluminum DJ 20"
|
|---|---|
|
Front suspension
|
SR Suntour XCM
|
|
Rims
|
Alex DP 17, double wall, 20"
|
|---|---|
|
Tires
|
Kenda K-Rad 20x2.3", skinwall
|
|
Rear hub
|
Norco Joytech Alloy Disc, freewheel
|
|
Front hub
|
Norco alloy disc, flange nuts
|
Geometry
| Size | One Size |
|---|---|
|
a
Seat tube length
|
230,0
|
|
b
Seat tube angle
|
73,0º
|
|
c
Top tube length
|
465,0
|
|
d
Head tube length
|
90,0
|
|
e
Head tube angle
|
69,0º
|
|
f
Rake
|
40,0
|
|
g
Trail
|
58,0
|
|
h
Wheelbase
|
845,0
|
|
i
Chainstay length
|
310,0
|
|
j
Bottom bracket drop
|
17,0
|
|
k
Stack height
|
435,0
|
|
l
Reach
|
332,0
|
|
m
Standover height
|
442,0
|
|
x
Bottom bracket height
|
245,0
|
|
y
Front center
|
536,0
|
