Norco Range A1 27.5 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
150mm

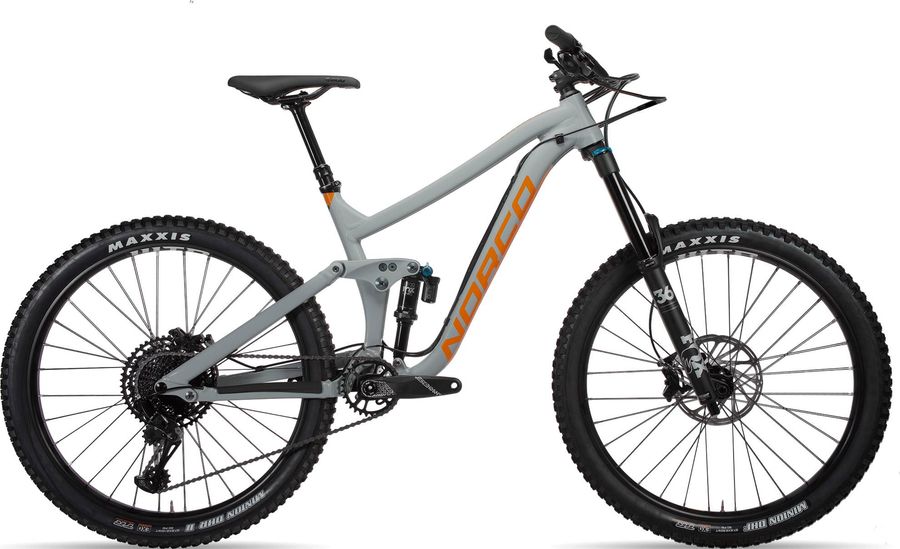

Norco Range A1 27.5 2019

About the Norco Range A1 27.5 2019

The Norco Range A1 27.5 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Range A1 27.5 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Components
Steam
Alloy 6061 40mm stem
Saddle
SDG Radar Mtn with CR-MO rails
Headset
FSA No. 57 Zero Stack ZS44/56, sealed cartridge bearing
Seatpost
TranzX YSP12JL Stealth Dropper, 80mm (XS) | 100mm (S) | 125mm (M) | 150mm (L/XL) Travel, 31.6mm, 1x Lever
Handlebar
Race Face Turbine R 35mm, 800mm, 20mm rise
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Decendent 6K DUB, 170mm (XS/S) | 175mm (M/L/XL), 30T
Shifter
Rear: SRAM NX Eagle, 12 Speed, Front: -
Bottom bracket
SRAM DUB BB, Threaded BSA 73mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Range, Aluminum, 150mm (29") | 160mm (27.5") Travel, Boost 12x148mm TA Dropouts
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
WTB ST i29 TCS 2.0, 32 Hole, 29mm Internal Width
Tires
Maxxis Minion DHF, 2.5" WT, EXO/Dual Compound, Folding
Spokes
DT Swiss Competition stainless steel butted
Rear hub
DT Swiss 370, Boost 12x148mm
Front hub
Novatec 110x15 sealed bearing disc hub

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
74,8º
74,4º
74,0º
73,7º
73,3º
c
Top tube length
537,0
566,0
595,0
625,0
654,0
d
Head tube length
100,0
100,0
110,0
120,0
130,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
64,5º
f
Rake
42,0
44,0
43,0
43,0
44,0
g
Trail
123,0
121,0
122,0
122,0
121,0
h
Wheelbase
1122,0
1153,0
1185,0
1217,0
1249,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
594,0
594,0
604,0
613,0
622,0
l
Reach
375,0
399,0
422,0
445,0
467,0
m
Standover height
799,0
789,0
787,0
788,0
789,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
345,0
y
Front center
705,0
731,0
758,0
785,0
812,0
