Norco Range A1 27.5 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
150mm

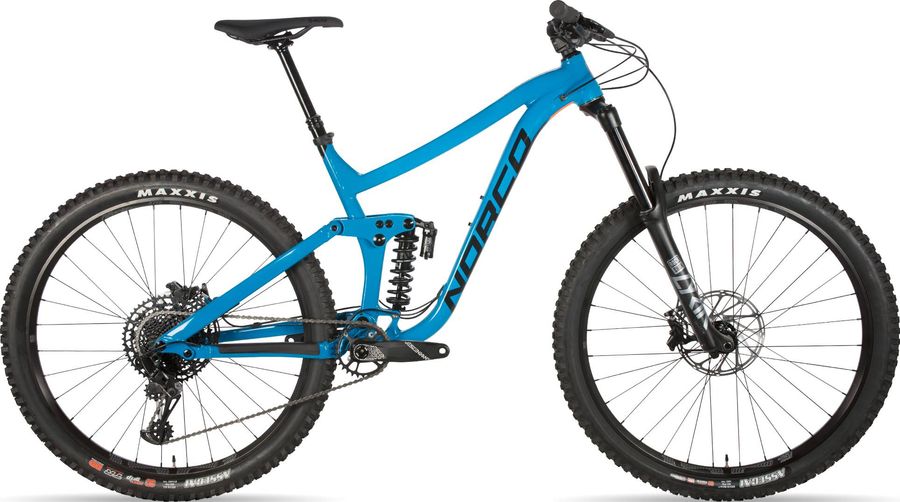

Norco Range A1 27.5 2020

About the Norco Range A1 27.5 2020

The Norco Range A1 27.5 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Range A1 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG lock on
Components
Steam
6061 Alloy, 40mm
Saddle
SDG Radar Mtn, Chromo rails
Headset
FSA No. 57 Zero Stack, sealed bearing
Seatpost
JD TransX YSP-23JL Dropper, 31.6mm, 80mm XS, 100mm S, 125mm M, 150 L/XL,1x lever
Handlebar
Deity Black Label 35mm, 800mm, 25mm rise
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Decendent 6K Eagle, Boost, 30T
Shifter
SRAM NX Eagle, 12 speed
Bottom bracket
SRAM DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Aluminum, 29" - 150mm Travel. 27.5" 160mm Travel
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Coil Select 393 g
Body eyelet
No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-SEL-A2
Name
Super Deluxe Coil Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
393
Wheels
Rims
e*thirteen LG1 29
Tires
Maxxis Assegai 2.5" 3C Max Terra/ EXO+ /TR
Rear hub
DT Swiss 370 sealed bearing, 12x148mm Boost
Front hub
Novatec sealed bearing 15x110,

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
74,8º
74,4º
74,0º
73,7º
73,3º
c
Top tube length
537,0
566,0
595,0
625,0
654,0
d
Head tube length
100,0
100,0
110,0
120,0
130,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
64,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
120,0
120,0
120,0
120,0
120,0
h
Wheelbase
1122,0
1153,0
1185,0
1217,0
1249,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
594,0
594,0
604,0
613,0
622,0
l
Reach
375,0
399,0
422,0
445,0
467,0
m
Standover height
661,0
681,0
697,0
713,0
731,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
345,0
y
Front center
705,0
731,0
758,0
785,0
812,0
