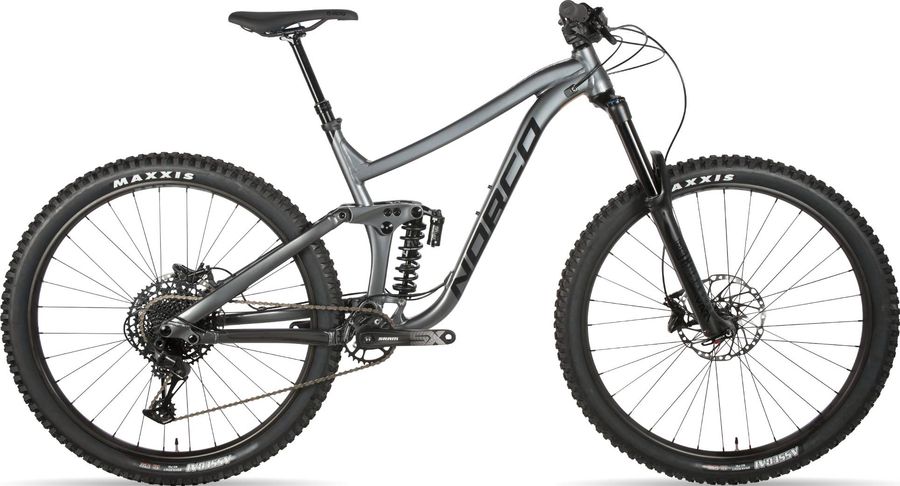

Norco Range A2 27.5 2020

Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
150mm
Norco Range A2 27.5 2020

About the Norco Range A2 27.5 2020

The Norco Range A2 27.5 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.


Features

The Norco Range A2 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG lock on
Components
Steam
6061 Alloy, 40mm
Saddle
SDG Radar Mtn.
Headset
FSA No. 57 Zero Stack, sealed bearing
Seatpost
JD TransX YSP18 JL dropper 31.6mm, 130mm, 1x lever
Handlebar
Norco 6061 alloy, 800mm, 20 mm rise 35mm bore
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
SRAM X1 1000 Eagle, Boost, DUB, 30T
Shifter
SRAM SX Eagle, 12 speed
Bottom bracket
SRAM DUB
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum, 29" - 150mm Travel. 27.5" 160mm Travel
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Coil Select 393 g
Body eyelet
No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-SEL-A2
Name
Super Deluxe Coil Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
393
Wheels
Rims
WTB ST I29 TCS 2.0 29
Tires
Maxxis Assegai 2.5" EXO/TR
Rear hub
Shimano Deore 12x148mm Boost
Front hub
Shimano Deore 15x110mm Boost

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
74,8º
74,4º
74,0º
73,7º
73,3º
c
Top tube length
537,0
566,0
595,0
625,0
654,0
d
Head tube length
100,0
100,0
110,0
120,0
130,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
64,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
120,0
120,0
120,0
120,0
120,0
h
Wheelbase
1122,0
1153,0
1185,0
1217,0
1249,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
594,0
594,0
604,0
613,0
622,0
l
Reach
375,0
399,0
422,0
445,0
467,0
m
Standover height
661,0
681,0
697,0
713,0
731,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
345,0
y
Front center
705,0
731,0
758,0
785,0
812,0
