Norco Range A2 29 2018

MTB Enduro
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

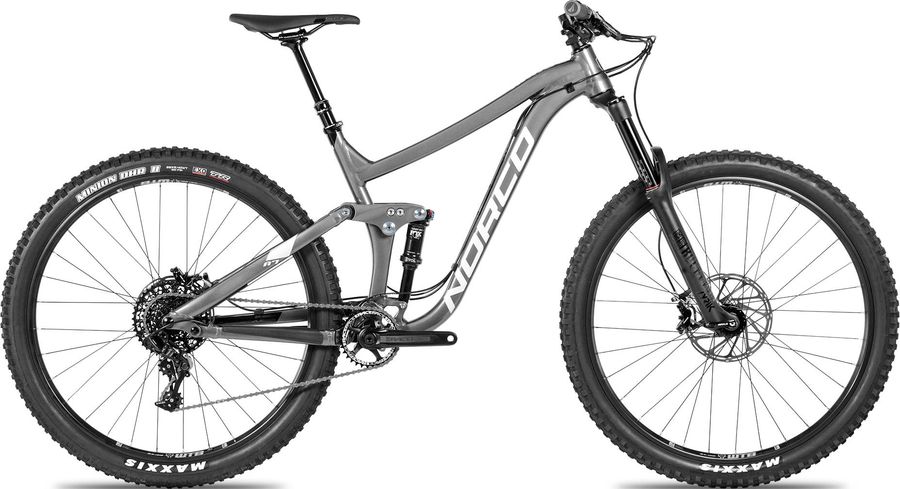

Norco Range A2 29 2018

About the Norco Range A2 29 2018

The Norco Range A2 29 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Norco Range A2 29 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Stage 1 lock on grip
Components
Steam
Alloy 6061 40mm (29), 50mm (650B) stem, 35mm bar bore
Saddle
SDG Duster RL
Headset
FSA #57E sealed cartridge bearing
Seatpost
JD Trans X post w/100 XS/SM, 125 Med, 150mm LG/XL 31.6
Handlebar
Norco 20 mm rise 6061 800mm, 35mm bar bore
Brake lever
SRAM Guide R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Race Face Aeffect w/ alloy direct mount 30T (29er), 32T (650B)
Shifter
SRAM GX1 11speed
Bottom bracket
Comes with Crank, threaded 73mm
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Range Aluminum 29 150mm travel, 650B 160mm travel
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float Performance EVOL
Wheels
Rims
WTB STP I29 TCS rim, 29mm
Tires
Maxxis Minion DHF 2.4 WT EXO/DC
Spokes
Sapim, stainless steel, butted
Rear hub
SRAM MTH 746 148x12 Boost sealed w/XD driver
Front hub
SRAM MTH 716 110x15 sealed bearing disc hub

Geometry

Size MD LG XL
a
Seat tube length
435,0
470,0
510,0
b
Seat tube angle
74,5º
74,1º
73,7º
c
Top tube length
608,0
638,0
668,0
d
Head tube length
100,0
100,0
104,0
e
Head tube angle
65,5º
65,5º
65,5º
f
Rake
51,0
51,0
51,0
g
Trail
115,0
115,0
115,0
h
Wheelbase
1189,0
1219,0
1250,0
i
Chainstay length
431,0
436,0
441,0
j
Bottom bracket drop
33,0
33,0
33,0
k
Stack height
624,0
624,0
628,0
l
Reach
435,0
460,0
484,0
m
Standover height
803,0
798,0
790,0
x
Bottom bracket height
340,0
340,0
340,0
y
Front center
760,0
785,0
810,0
