Norco Range A2 29 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
150mm

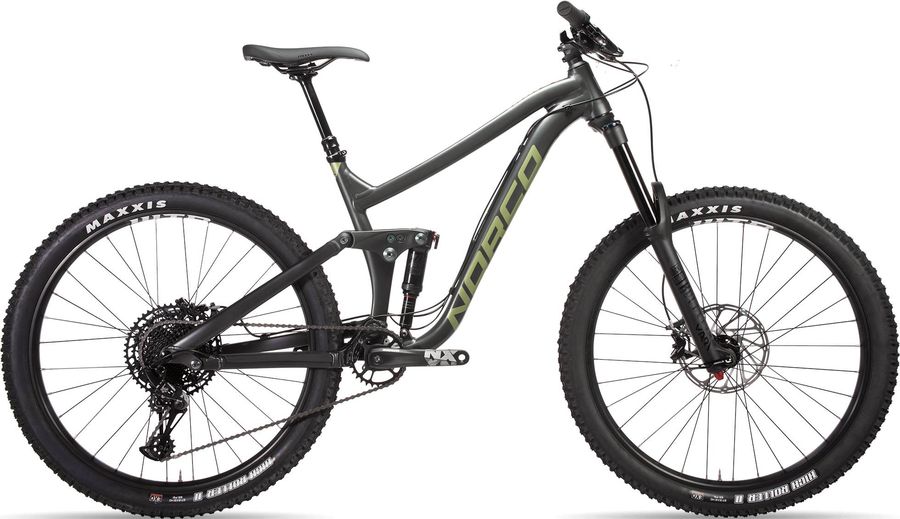

Norco Range A2 29 2019

About the Norco Range A2 29 2019

The Norco Range A2 29 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Range A2 29 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Components
Steam
Alloy 6061 40mm stem
Saddle
WTB Volt Sport
Headset
FSA No. 57 Zero Stack ZS44/56, sealed cartridge bearing
Seatpost
TranzX YSP12JL Stealth Dropper, 80mm (XS) | 100mm (S) | 125mm (M) | 150mm (L/XL) Travel, 31.6mm, 1x Lever
Handlebar
Norco 20 mm rise 6061 800mm x 20mm rise, 35mm bar bore
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle, 170mm (XS/S) | 175mm (M/L/XL), 30T
Shifter
Rear: SRAM NX Eagle, 12 Speed, Front: -
Bottom bracket
SRAM Power Spline BB, Threaded BSA 73mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Range, Aluminum, 150mm (29") | 160mm (27.5") Travel, Boost 12x148mm TA Dropouts
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB ST i29 TCS 2.0, 32 Hole, 29mm Internal Width
Tires
Maxxis High Roller II, 2.3", EXO, Folding
Spokes
Shadar stainless steel
Rear hub
Novatec D462SB, Boost 12x148mm
Front hub
Novatec 110x15 sealed bearing disc hub

Geometry

Size MD LG XL
a
Seat tube length
432,0
470,0
510,0
b
Seat tube angle
73,8º
73,5º
73,2º
c
Top tube length
610,0
638,0
667,0
d
Head tube length
100,0
100,0
104,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
51,0
52,0
50,0
g
Trail
118,0
117,0
119,0
h
Wheelbase
1189,0
1219,0
1251,0
i
Chainstay length
428,0
433,0
438,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
616,0
616,0
628,0
l
Reach
430,0
454,0
477,0
m
Standover height
801,0
799,0
796,0
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
762,0
788,0
814,0
