Norco Range A3 27.5 2018

MTB Enduro
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

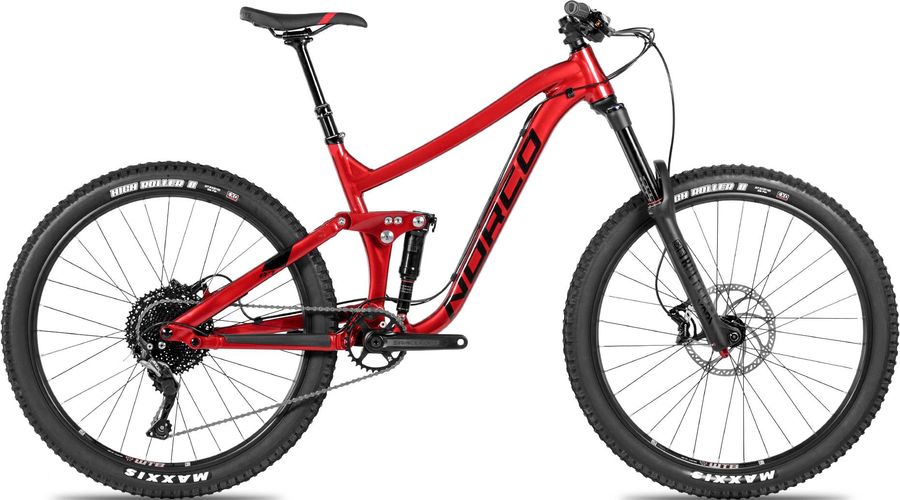

Norco Range A3 27.5 2018

About the Norco Range A3 27.5 2018

The Norco Range A3 27.5 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Norco Range A3 27.5 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco lock on grip
Components
Steam
Alloy 6061 40mm stem (29), 50mm (650B)
Saddle
WTB Volt
Headset
FSA #57E sealed cartridge bearing
Seatpost
JD Trans X post 100mm XS/SM, 125mm M/L/XL 31.6
Handlebar
Norco 20 mm rise 6061 800mm, 35mm bar bore
Brake lever
Tektro HD levers
Brakes
Tektro HD-M745
Drivetrain
Crankset
Race Face Aeffect w/ direct mount 30T (29), 32T (650B)
Shifter
Shimano SLX M-7000 11 speed
Bottom bracket
Comes with Crank (threaded 73mm )
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Cassette
Sunrace 11-speed
Frameset
Frame
Range Aluminum 29 150mm travel, 650B 160mm travel
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB STP I29 TCS rim, 29mm
Tires
Maxxis High Roller II 2.3 Folding EXO
Spokes
Shadar stainless steel
Rear hub
Novatec 148x12 w 5 sealed bearing
Front hub
Novatec 110x15 sealed bearing disc hub

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
75,4º
75,0º
74,5º
74,1º
73,6º
c
Top tube length
534,0
564,0
594,0
624,0
654,0
d
Head tube length
100,0
100,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
117,0
117,0
117,0
117,0
117,0
h
Wheelbase
1119,0
1149,0
1181,0
1212,0
1244,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
12,0
k
Stack height
591,0
591,0
600,0
609,0
618,0
l
Reach
379,0
404,0
427,0
449,0
472,0
m
Standover height
796,0
785,0
781,0
779,0
782,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
342,0
y
Front center
703,0
727,0
754,0
781,0
807,0
