Norco Range C1 27.5 2018

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

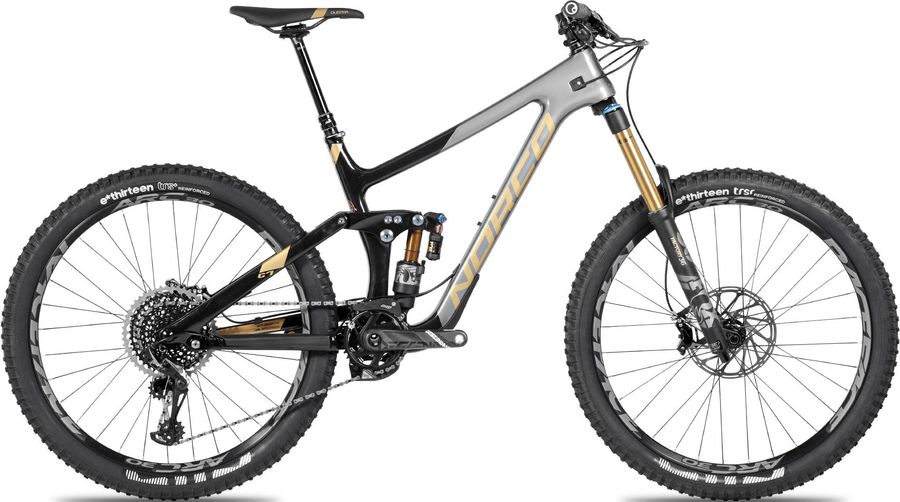

Norco Range C1 27.5 2018

About the Norco Range C1 27.5 2018

The Norco Range C1 27.5 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Range C1 27.5 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA 30 lock on grip
Components
Steam
Race Face Turbine R 40mm ext (29), 50mm (650B)
Saddle
SDG Duster RL w/Norco Design, Chromoly rails
Headset
FSA #57E sealed cartridge bearing
Seatpost
Rockshox Reverb Stealth new lever 100mm XS/SM, 125 M/ 150mm L/XL, 31.6mm
Handlebar
Race Face SixC 820mm carbon bar 35mm
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Decendent Eagle carbon crank 32T 29er, 34T 650B
Shifter
SRAM XO1 12 speed
Chain guide
MRP SXG, small upper guide
Bottom bracket
SRAM GXP Pressfit 92 BB
Chain tensioner
MRP SXg with smaller TR upper
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Range Carbon 29 150mm travel, 650B 160mm travel
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
Race Face ARC 30 welded 30mm
Tires
E-13 TRS Race Sticky Triple Compound 2.35
Spokes
DT Swiss Competition, stainless steel, butted
Rear hub
DT 240 Boost 148x12 w/XD driver
Front hub
DT 240 Boost 110x15

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
75,4º
75,0º
74,5º
74,1º
73,6º
c
Top tube length
534,0
564,0
594,0
624,0
654,0
d
Head tube length
90,0
100,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
43,0
44,0
44,0
44,0
44,0
g
Trail
118,0
117,0
117,0
117,0
117,0
h
Wheelbase
1117,0
1149,0
1181,0
1212,0
1244,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
12,0
k
Stack height
582,0
591,0
600,0
609,0
618,0
l
Reach
382,0
404,0
427,0
449,0
472,0
m
Standover height
788,0
785,0
781,0
779,0
782,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
342,0
y
Front center
701,0
727,0
754,0
781,0
807,0
