BikeWise

Norco Range C1 29 2019

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
150mm

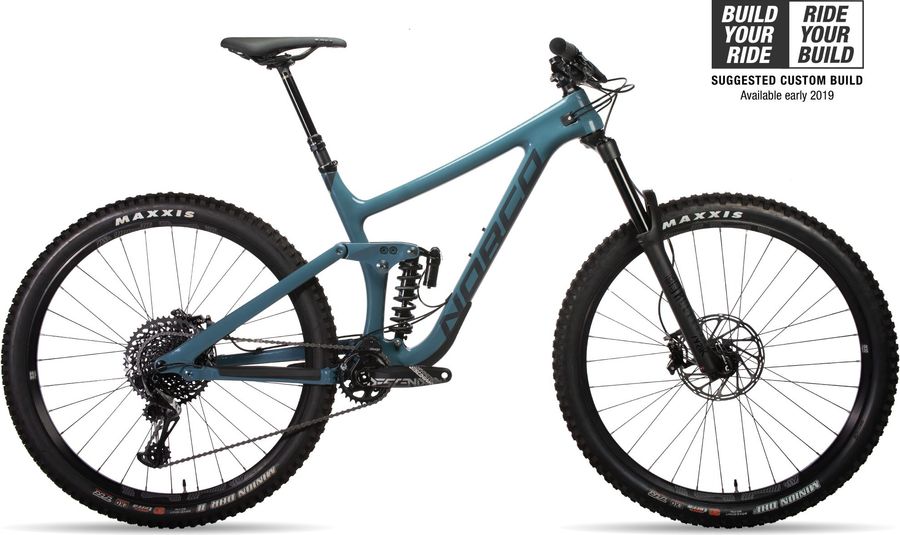

Norco Range C1 29 2019

About the Norco Range C1 29 2019

The Norco Range C1 29 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Range C1 29 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE 10 EVO grips
Components
Steam
Race Face Aeffect R 35mm stem, 40mm 29er, 50mm 650B
Saddle
SDG Radar Mtn with CR-MO rails
Headset
FSA No. 57 Zero Stack ZS44/56, sealed cartridge bearing
Seatpost
Rockshox Reverb Stealth w/1X lever, 100mm XS/S, 125 M, 150/L/XL) 31.6mm
Handlebar
Race Face Turbine R 35mm, 800mm, 20mm rise
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM/Truvativ Decendent Eagle 7K Boost DUB crank w/30T AL
Shifter
SRAM GX Eagle 12 speed
Chain guide
MRP 1x Guide
Bottom bracket
SRAM DUB Pressfit BB 92
Chain tensioner
MRP 1x Guide, ISCG 05 mount
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Range Carbon 150mm 29, 160mm 650B Rear wheel travel
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe Coil R
Body eyelet
Bearing, Standard, Trunnion
Compression tune
M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-R-A1
Name
Super Deluxe Coil R
Rebound tune
M
Shaft eyelet
Bearing, Standard
Wheels
Rims
E-13 TRS aluminum rim, 30mm inner
Tires
Maxxis Minion DHF 2.5 WT 3C/Maxx Terra/EXO/TR
Spokes
DT Swiss Competition stainless steel butted
Rear hub
DT 350 148x12 Boost sealed w/XD driver
Front hub
DT 350 110x15 sealed bearing disc hub

Geometry

Size MD LG XL
a
Seat tube length
432,0
470,0
510,0
b
Seat tube angle
73,8º
73,5º
73,2º
c
Top tube length
610,0
638,0
667,0
d
Head tube length
90,0
94,0
104,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
57,0
55,0
50,0
g
Trail
112,0
114,0
119,0
h
Wheelbase
1189,0
1219,0
1251,0
i
Chainstay length
428,0
433,0
438,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
607,0
611,0
628,0
l
Reach
427,0
452,0
477,0
m
Standover height
797,0
796,0
796,0
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
762,0
788,0
814,0
