BikeWise

Norco Range C3 27.5 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

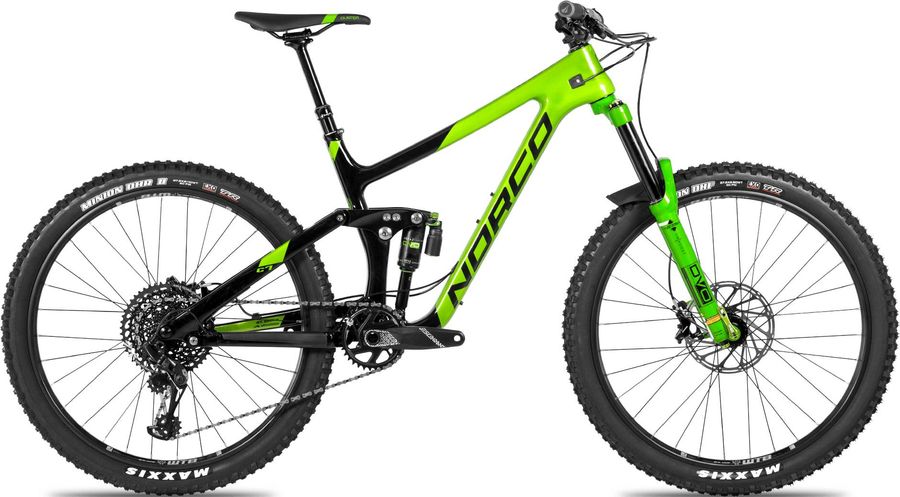

Norco Range C3 27.5 2018

About the Norco Range C3 27.5 2018

The Norco Range C3 27.5 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Norco Range C3 27.5 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Stage 1 lock on grip
Components
Steam
Alloy 6061 40mm (29), 50mm (650B)
Saddle
SDG Duster RL
Headset
FSA #57E sealed cartridge bearing
Seatpost
JD Trans X post XS/SM 100, M 125, L,XL 150mm 31.6mm
Handlebar
Norco 20 mm rise 6061 800mm, 35mm bar bore
Brake lever
SRAM Guide R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM/Truvativ Decendent Eagle Boost crank w/32T 29er, 34T 650B
Shifter
SRAM GX1 12 speed
Bottom bracket
With Pressfit BB 92 (included with crank)
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Frameset
Frame
Range Carbon 29 150mm travel, 650B 160mm travel
Front suspension
DVO Diamond
Rear suspension
DVO Topaz T3
Wheels
Rims
WTB STP I29 TCS rim 29mm
Tires
Maxxis Minion DHF 2.5 WT EXO/TR folding
Spokes
Shadar stainless steel
Rear hub
SRAM MTH 746 148x12 Boost sealed w/XD driver
Front hub
SRAM MTH 716 110x15 sealed bearing disc hub

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
75,4º
75,0º
74,5º
74,1º
73,6º
c
Top tube length
534,0
564,0
594,0
624,0
654,0
d
Head tube length
90,0
100,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
43,0
44,0
44,0
44,0
44,0
g
Trail
118,0
117,0
117,0
117,0
117,0
h
Wheelbase
1117,0
1149,0
1181,0
1212,0
1244,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
12,0
k
Stack height
582,0
591,0
600,0
609,0
618,0
l
Reach
382,0
404,0
427,0
449,0
472,0
m
Standover height
788,0
785,0
781,0
779,0
782,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
342,0
y
Front center
701,0
727,0
754,0
781,0
807,0
