BikeWise

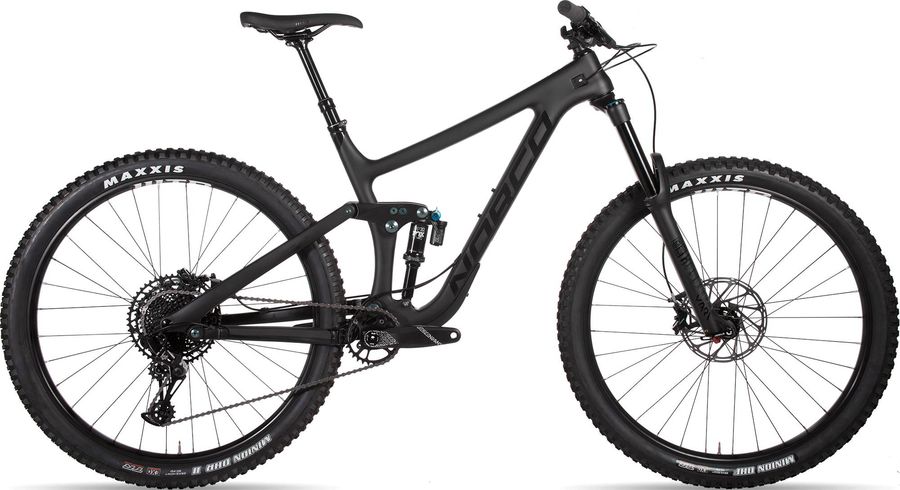

Norco Range C3 27.5 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
150mm
Norco Range C3 27.5 2019

About the Norco Range C3 27.5 2019

The Norco Range C3 27.5 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Range C3 27.5 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Components
Steam
Alloy 6061 29er x 40mm, 650B x 50mm
Saddle
WTB Volt wide with medium padding
Headset
FSA No. 57 Zero Stack ZS44/56, sealed cartridge bearing
Seatpost
TranzX YSP12JL Stealth Dropper, 80mm (XS) | 100mm (S) | 125mm (M) | 150mm (L/XL) Travel, 31.6mm, 1x Lever
Handlebar
Norco 6061 aluminum 800x20mm, 35mm bar bore
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Decendent 6K DUB, 170mm (XS/S) | 175mm (M/L/XL), 30T
Shifter
Rear: SRAM NX Eagle, 12 Speed, Front: -
Bottom bracket
SRAM DUB BB, PF92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Range, Carbon Front Triangle and Seat Stay, Aluminum Chainstay and Linkarm, 150mm (29") | 160mm (27.5") Travel, Boost 12x148mm TA Dropouts
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
Fox Float DPX2 Performance EVOL
Wheels
Rims
WTB ST i29 TCS 2.0, 32 Hole, 29mm Internal Width
Tires
Maxxis Minion DHF, 2.5" WT, EXO/TR, Folding
Spokes
DT Swiss Competition stainless steel butted
Rear hub
DT Swiss 370, Boost 12x148mm
Front hub
Novatec 110x15 sealed bearing disc hub

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
74,8º
74,4º
74,0º
73,7º
73,3º
c
Top tube length
537,0
566,0
595,0
625,0
654,0
d
Head tube length
90,0
100,0
110,0
120,0
130,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
64,5º
f
Rake
44,0
44,0
43,0
43,0
44,0
g
Trail
121,0
121,0
122,0
122,0
121,0
h
Wheelbase
1122,0
1153,0
1185,0
1217,0
1249,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
585,0
594,0
604,0
613,0
622,0
l
Reach
377,0
399,0
422,0
445,0
467,0
m
Standover height
791,0
789,0
787,0
788,0
789,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
345,0
y
Front center
705,0
731,0
758,0
785,0
812,0
