Norco Range VLT C2 2020

E-Bike
MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
180mm
Rear travel
170mm

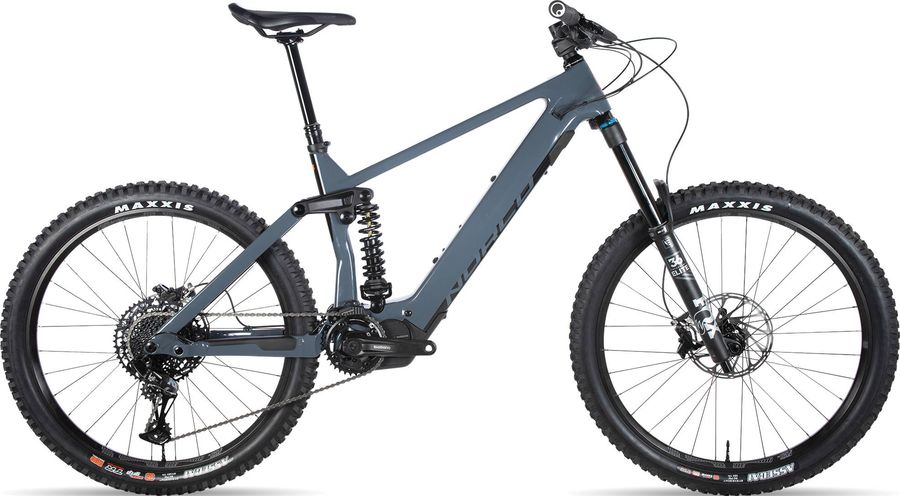

Norco Range VLT C2 2020

About the Norco Range VLT C2 2020

The Norco Range VLT C2 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Norco Range VLT C2 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 EVO, lock on
Components
Steam
Norco 40mm, 35mm bore
Saddle
Ergon SM-10 E-Mountain Sport
Battery
In-Tube Battery, 630Wh
Headset
Acros Block Lock, sealed bearing
Seatpost
JD TranzX YSP-39JL Dropper M 150mm, L/XL170mm, 1x lever
Handlebar
Norco 6061 Aluminum, 800mm, 20mm rise, 35mm bore
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Shimano FC-E8000, 165mm, 34T SRAM Eagle narrow/wide
Motor
Shimano STEPS E8000
Shifter
SRAM NX Eagle, 12 speed, Single Click
Bottom bracket
Samox 104 BCD Spider, Shimano spline
Chain tensioner
e*thirteen Compact Upper Slider
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
Carbon 27.5, 170mm Travel, M/L/XL
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox DHX2 Performance Elite
Wheels
Rims
e*thirteen LG1 DH, 27.5
Tires
Maxxis Assegai. 2.5” 3C Maxx Terra, EXO+,TR
Rear hub
DT Swiss H370 E-MTB
Front hub
Novatec, sealed bearing 15x110mm Boost

Geometry

Size MD LG XL
a
Seat tube length
405,0
445,0
485,0
b
Seat tube angle
77,3º
77,7º
78,0º
c
Top tube length
590,0
619,0
647,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
63,5º
63,5º
63,5º
f
Rake
37,0
37,0
37,0
g
Trail
138,0
138,0
138,0
h
Wheelbase
1234,0
1268,0
1303,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
5,0
5,0
5,0
k
Stack height
607,0
615,0
624,0
l
Reach
455,0
485,0
515,0
m
Standover height
712,0
726,0
739,0
x
Bottom bracket height
355,0
355,0
355,0
y
Front center
789,0
823,0
858,0
