Norco Range VLT C3 2021

E-Bike
MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
180mm
Rear travel
170mm

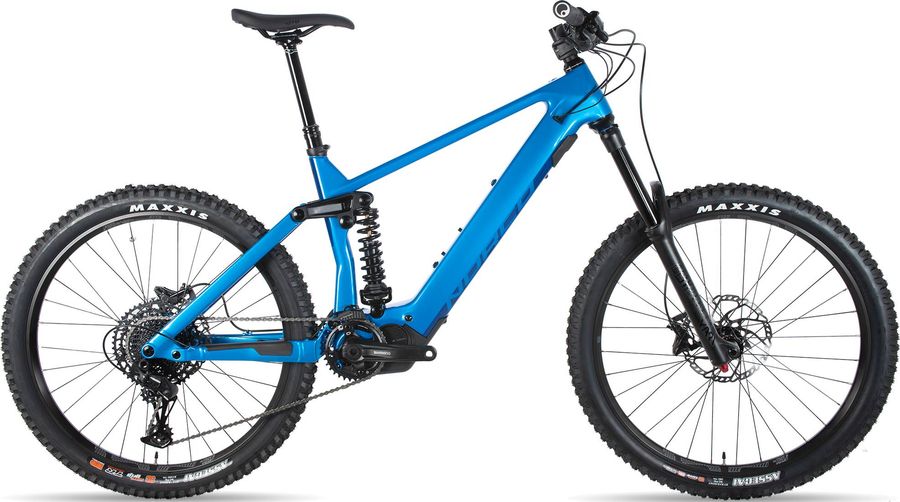

Norco Range VLT C3 2021

About the Norco Range VLT C3 2021

The Norco Range VLT C3 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Norco Range VLT C3 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 EVO, lock on
Components
Steam
Norco 40mm, 35mm bore
Saddle
WTB Volt Sport
Battery
In-Tube Battery, 500Wh
Headset
FSA No.57, Block, sealed bearing, internal
Seatpost
JD TranzX YSP-39JL Dropper M/150, L/XL170mm, 1x lever
Handlebar
Norco 6061 Aluminum, 800mm, 20mm rise, 35mm bore
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano FC-E8000, 165mm, 34T SRAM Eagle narrow/wide
Motor
Shimano STEPS E7000
Shifter
SRAM SX Eagle, 12 speed, Single Click
Bottom bracket
Samox 104 BCD Spider, Shimano spline
Chain tensioner
e*thirteen Compact Upper Slider
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon 27.5, 170mm Travel, M/L/XL
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Coil Select 393 g
Body eyelet
No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-SEL-A2
Name
Super Deluxe Coil Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
393
Wheels
Rims
e*thirteen LG1 DH, 27.5
Tires
Maxxis Assegai. 2.5” 3C Maxx Terra, EXO+,TR
Rear hub
DT Swiss H370 E-MTB
Front hub
Shimano Deore HB-6010 15x110mm Boost

Geometry

Size MD LG XL
a
Seat tube length
405,0
445,0
485,0
b
Seat tube angle
77,3º
77,7º
78,0º
c
Top tube length
590,0
619,0
647,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
63,5º
63,5º
63,5º
f
Rake
37,0
37,0
37,0
g
Trail
138,0
138,0
138,0
h
Wheelbase
1234,0
1268,0
1303,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
5,0
5,0
5,0
k
Stack height
607,0
615,0
624,0
l
Reach
455,0
485,0
515,0
m
Standover height
712,0
726,0
739,0
x
Bottom bracket height
355,0
355,0
355,0
y
Front center
789,0
823,0
858,0
