Norco Revolver FS 1 100 2020

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

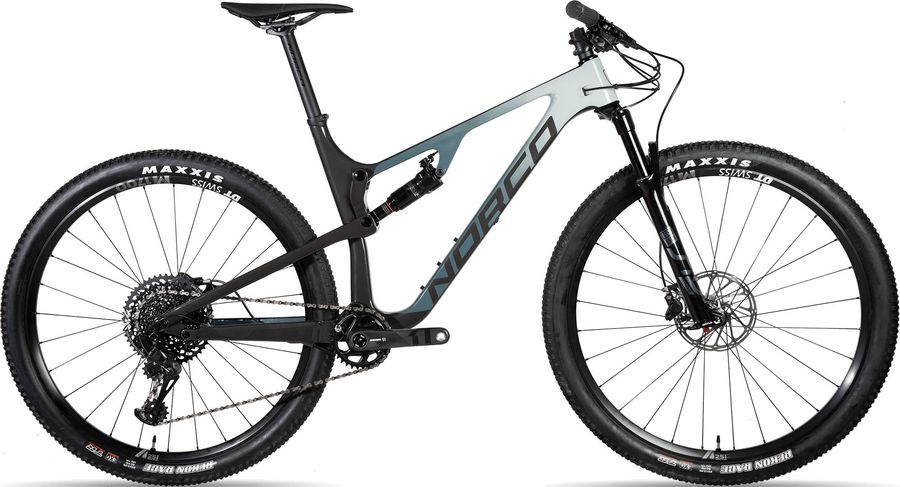

Norco Revolver FS 1 100 2020

About the Norco Revolver FS 1 100 2020

The Norco Revolver FS 1 100 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Norco Revolver FS 1 100 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SRAM Twistloc
Components
Steam
SL Aluminum, 60mm Length
Saddle
Norco SL Race, Chromo Rails
Headset
FSA Internal
Seatpost
SL Aluminum, 31.6mm
Handlebar
6061 DB Aluminum, 31.8mm, 760mm Length, 15mm Rise
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X1 Eagle DUB Carbon 12spd 32T
Shifter
SRAM GX Eagle, 12 speed
Bottom bracket
SRAM DUB, Press Fit, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Hi-Mod Carbon, 100mm Rear Travel
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
DT Swiss M1700 Spline Wheelset, 25mm ID
Tires
Maxxis Rekon Race, 29 x 2.25"
Rear hub
DT Swiss M1700
Front hub
DT Swiss M1700

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
485,0
510,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
565,0
595,0
628,0
660,0
d
Head tube length
90,0
90,0
100,0
110,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1106,0
1139,0
1176,0
1213,0
i
Chainstay length
411,0
414,3
417,7
421,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
570,0
570,0
579,0
588,0
l
Reach
421,0
451,0
481,0
511,0
m
Standover height
691,0
699,0
699,0
708,0
x
Bottom bracket height
333,0
333,0
333,0
333,0
y
Front center
698,0
728,0
761,0
795,0
