Norco Revolver FS 1 100 2021

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

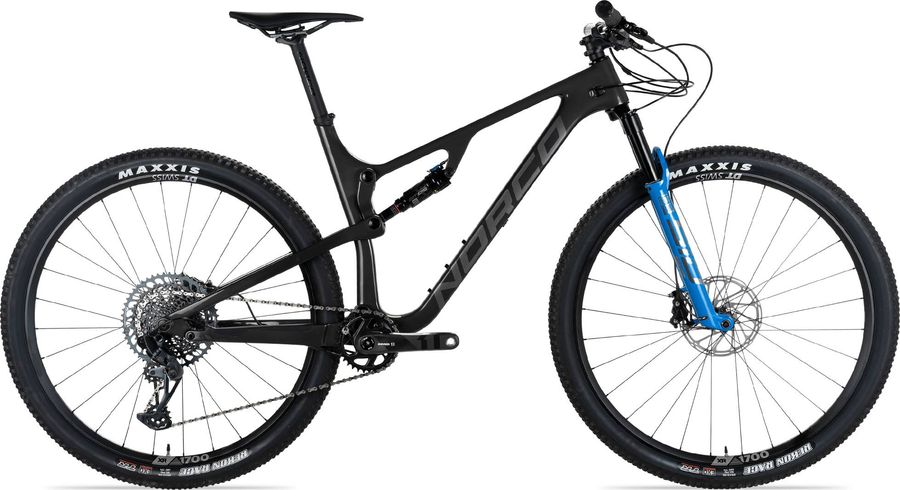

Norco Revolver FS 1 100 2021

About the Norco Revolver FS 1 100 2021

The Norco Revolver FS 1 100 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Norco Revolver FS 1 100 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SRAM
Components
Steam
Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp
Saddle
Norco SL Race, Chromo Rails, Black
Headset
FSA Internal Cartridge Bearing
Seatpost
Norco SL Alloy, 31.6mm
Handlebar
Butted Alloy Lite, 760mm, 15mm Rise
Discs
SRAM Centerline, 180mm
Brake lever
SRAM Level TLM
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X1 Eagle DUB Carbon, 32T, 170mm (S), 175mm (M, L, XL)
Shifter
SRAM GX Eagle
Bottom bracket
SRAM BB DUB PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Hi-Mod Carbon, 100mm, Ride Aligned™
Front suspension
RockShox SID SL Ultimate DebonAir 1326 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue
Damper type
Charger Race Day
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-ULT-C1
Name
SID SL Ultimate
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1326
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
DT Swiss XR 1700 Spline 29" Wheelset
Tires
Maxxis Rekon Race 2.25" 3C/TR/EXO
Rear hub
DT Swiss XR 1700 Spline, 12x148mm Boost, XD, 6 Bolt
Front hub
DT Swiss XR 1700 Spline, 15x110mm Boost, 6 Bolt

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
485,0
510,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
565,0
595,0
628,0
660,0
d
Head tube length
90,0
90,0
100,0
110,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1106,0
1139,0
1176,0
1213,0
i
Chainstay length
411,0
414,3
417,7
421,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
570,0
570,0
579,0
588,0
l
Reach
421,0
451,0
481,0
511,0
m
Standover height
691,0
699,0
699,0
708,0
x
Bottom bracket height
333,0
333,0
333,0
333,0
y
Front center
698,0
728,0
761,0
795,0
