Norco Revolver FS 2 100 2021

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

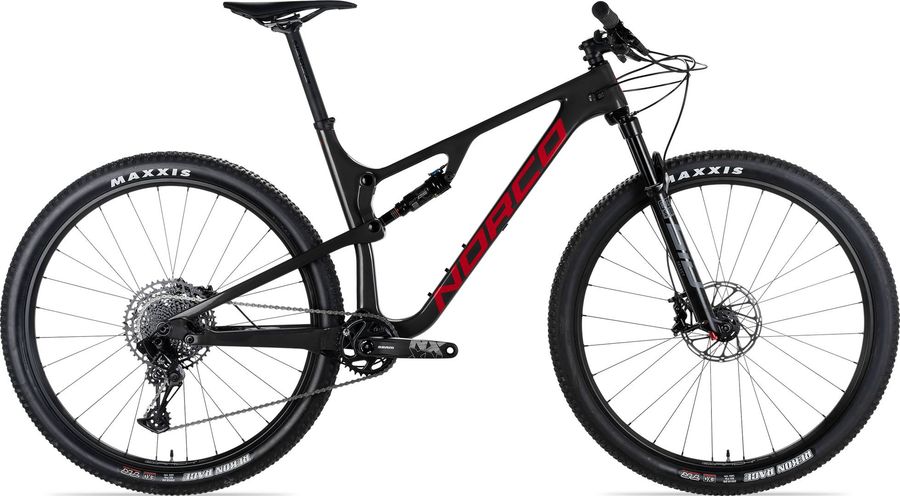

Norco Revolver FS 2 100 2021

About the Norco Revolver FS 2 100 2021

The Norco Revolver FS 2 100 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Norco Revolver FS 2 100 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SRAM
Components
Steam
Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp
Saddle
Norco SL Race, Chromo Rails, Black
Headset
FSA Internal
Seatpost
Norco SL Alloy, 31.6mm
Handlebar
Butted Alloy Lite, 760mm, 15mm Rise
Discs
SRAM Centerline, 180mm
Brake lever
SRAM G2 R
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
SRAM NX Eagle DUB, 32T, 170mm (S), 175mm (M, L, XL)
Shifter
SRAM NX Eagle 12spd MMX
Bottom bracket
SRAM BB DUB PF92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Hi-Mod Carbon, 100mm, Ride Aligned™
Front suspension
RockShox SID SL Select DebonAir 1468 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-SEL-C1
Name
SID SL Select
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1468
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
Stans Arch D 29" 28H
Tires
Maxxis Rekon Race 2.25" 3C/TR/EXO
Rear hub
Bear Pawls, 12x148mm Boost, HG, 6 Bolt
Front hub
Bear Pawls, 15x110mm Boost, 6 Bolt

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
485,0
510,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
565,0
595,0
628,0
660,0
d
Head tube length
90,0
90,0
100,0
100,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1106,0
1139,0
1176,0
1213,0
i
Chainstay length
411,0
414,3
417,7
421,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
570,0
570,0
579,0
588,0
l
Reach
421,0
451,0
481,0
511,0
m
Standover height
691,0
699,0
699,0
708,0
x
Bottom bracket height
333,0
333,0
333,0
333,0
y
Front center
698,0
728,0
761,0
795,0
