BikeWise

Norco Revolver FS 2 120 2021

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

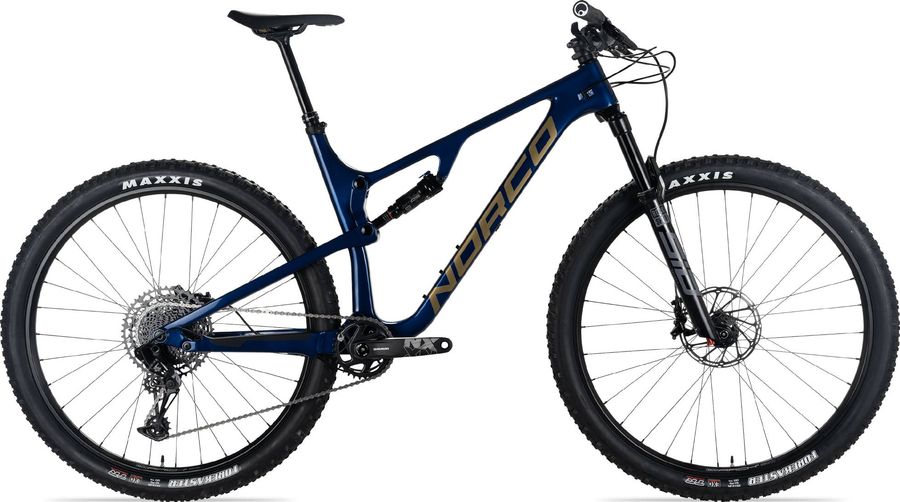

Norco Revolver FS 2 120 2021

About the Norco Revolver FS 2 120 2021

The Norco Revolver FS 2 120 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Revolver FS 2 120 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20 Lock-On
Components
Steam
6061 Alloy 60mm Length, 35mm Clamp
Saddle
Fizik Alpaca Terra, Wingflex
Headset
FSA Internal Cartridge Bearing
Seatpost
X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M, L, XL)
Handlebar
Butted 6061 Alloy, 780mm, 20mm Rise
Discs
SRAM Centerline, 180mm
Brake lever
SRAM G2 R
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
SRAM NX Eagle DUB, 32T, 170mm (S), 175mm (M, L, XL)
Shifter
SRAM NX Eagle MMX
Bottom bracket
SRAM BB DUB PF92
Chain
SRAM NX
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
Hi-Mod Carbon, 120mm, Ride Aligned™
Front suspension
RockShox SID Select DebonAir 1671 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SEL-C1
Name
SID Select
Spring
DebonAir
Travel (mm)
110mm, 120mm
Upper tube type
35mm tapered aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1671
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
Stans Arch D 29" 32H
Tires
Maxxis Forekaster 2.35" TR/EXO
Rear hub
Bear Pawls, 12x148mm Boost, HG, 6 Bolt
Front hub
Bear Pawls, 15x110mm Boost, 6 Bolt

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
485,0
510,0
b
Seat tube angle
74,9º
74,9º
74,9º
74,9º
c
Top tube length
568,0
598,0
631,0
663,0
d
Head tube length
90,0
90,0
100,0
110,0
e
Head tube angle
67,4º
67,4º
67,4º
67,4º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
100,0
100,0
100,0
100,0
h
Wheelbase
1108,0
1141,0
1179,0
1216,0
i
Chainstay length
411,0
414,3
417,7
421,0
j
Bottom bracket drop
32,0
32,0
32,0
32,0
k
Stack height
578,0
578,0
588,0
598,0
l
Reach
409,0
439,0
469,0
500,0
m
Standover height
700,0
707,0
708,0
717,0
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
699,0
729,0
763,0
797,0
