Norco Revolver FS 2 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

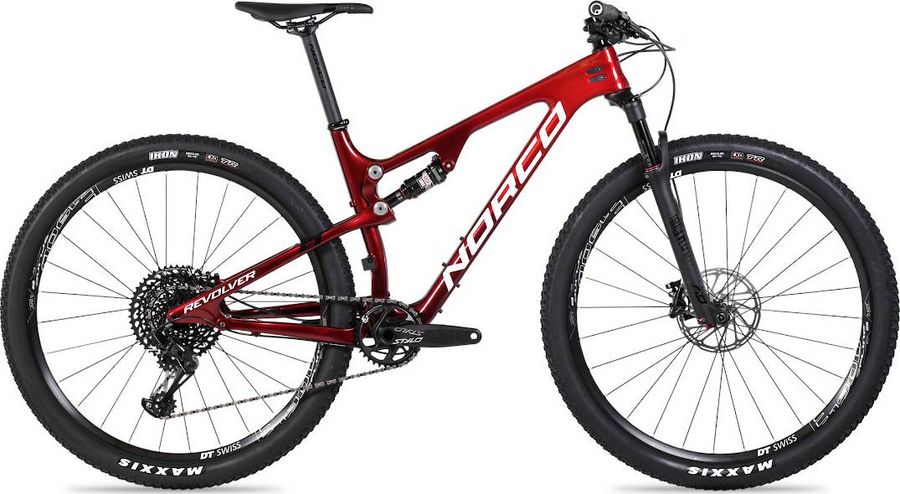

Norco Revolver FS 2 2019

About the Norco Revolver FS 2 2019

The Norco Revolver FS 2 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Norco Revolver FS 2 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30, Lock-on
Components
Steam
Norco SL alloy
Saddle
SDG Duster RL
Headset
Angular sealed cartridge bearings
Seatpost
Norco SL alloy
Handlebar
Norco DB Lite, 760mm, 15mm rise
Brake lever
SRAM Level TL
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Truvativ Stylo 6K Eagle, direct mount
Shifter
SRAM GX Eagle, 12-speed
Bottom bracket
SRAM pressfit MTB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
DT Swiss M1900 Spline wheelset, 25mm
Tires
Maxxis Ikon 2.2", TR, EXO
Spokes
DT Swiss Champion, straight pull
Rear hub
DT Swiss M1900 Spline wheelset
Front hub
DT Swiss M1900 Spline wheelset

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
410,0
445,0
485,0
530,0
b
Seat tube angle
75,0º
74,75º
74,5º
74,25º
74,0º
c
Top tube length
534,0
571,0
598,0
625,0
652,0
d
Head tube length
100,0
90,0
90,0
100,0
110,0
e
Head tube angle
70,0º
70,25º
70,5º
70,75º
71,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1046,0
1097,0
1121,0
1146,0
1171,0
i
Chainstay length
419,0
434,0
436,0
439,0
441,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
k
Stack height
555,0
579,0
580,0
591,0
601,0
l
Reach
384,0
412,0
436,0
458,0
479,0
m
Standover height
736,0
772,0
762,0
757,0
749,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
-
