BikeWise

Norco Revolver FS 3 2018

MTB Cross Country
Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

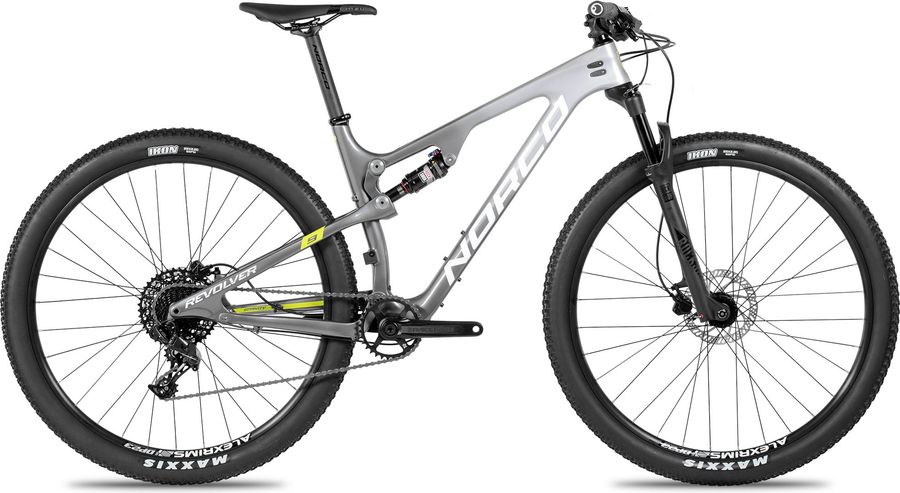

Norco Revolver FS 3 2018

About the Norco Revolver FS 3 2018

The Norco Revolver FS 3 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Revolver FS 3 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30 Lock On Grip
Components
Steam
Norco SL Alloy Stem
Saddle
SDG Duster RL
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Norco SL Alloy Post 31.6
Handlebar
Norco DB Lite 760mm 15mm Riser
Brake lever
Tektro HD-M285
Brakes
Tektro HD-M285
Drivetrain
Crankset
Race Face Aeffect 32T DM
Shifter
SRAM NX 11spd
Bottom bracket
Race Face BB92
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Revolver FS Hi-Mod Carbon 100mm XC Race Frame
Front suspension
RockShox Judy Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A2
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Alex DP-23 29"/27.5" TRS
Tires
Maxxis Ikon 29"x 2.2"/27.5" x 2.2"
Spokes
Stainless steel, black, 14 gauge
Rear hub
Novatec D162SB-SL-X12 142mm x 12mm
Front hub
Novatec D041SB-B15 110mm x 15mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
410,0
445,0
485,0
530,0
b
Seat tube angle
75,0º
74,75º
74,5º
74,25º
74,0º
c
Top tube length
534,0
571,0
598,0
625,0
652,0
d
Head tube length
100,0
90,0
90,0
100,0
110,0
e
Head tube angle
70,0º
70,25º
70,5º
70,75º
71,0º
f
Rake
42,0
51,0
52,0
50,0
52,0
g
Trail
85,0
80,0
77,0
78,0
74,0
h
Wheelbase
1046,0
1097,0
1121,0
1146,0
1171,0
i
Chainstay length
419,0
434,0
436,0
439,0
441,0
j
Bottom bracket drop
20,0
38,0
38,0
38,0
38,0
k
Stack height
555,0
579,0
580,0
591,0
601,0
l
Reach
384,0
412,0
436,0
458,0
479,0
m
Standover height
736,0
772,0
762,0
757,0
749,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
628,0
666,0
687,0
710,0
732,0
