BikeWise

Norco Revolver FS XX1 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm
Norco Revolver FS XX1 2018

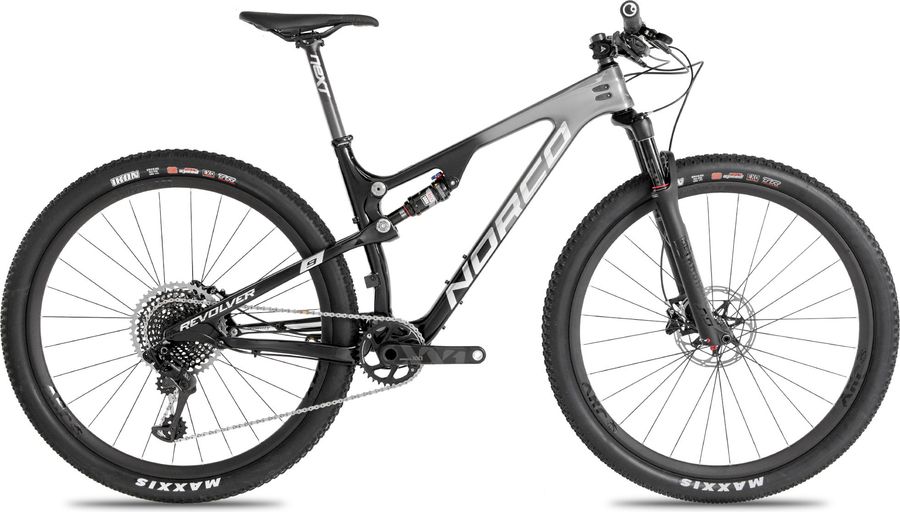

About the Norco Revolver FS XX1 2018

The Norco Revolver FS XX1 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Revolver FS XX1 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30 Lock On Grip
Components
Steam
Race Face Turbine 35mm
Saddle
SDG Duster RL
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Race Face Next 31.6/400mm
Handlebar
Race Face Next SL Carbon 760mm/10mm
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle 34T 12spd
Shifter
SRAM XX1 Eagle 12spd
Bottom bracket
SRAM PF MTB
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Revolver FS Hi-Mod Carbon 100mm XC Race Frame
Front suspension
RockShox SID World Cup DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm, 220mm
Minimum rotor size
160mm
Model
FS-SID-WC-B3
Name
SID World Cup
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
DT Swiss XRC 1200 Carbon
Tires
Maxxis Ikon 29"x 2.2"/27.5" x 2.2" 3C/TR/EXO
Spokes
DT Swiss
Rear hub
DT Swiss XRC 1200 Spline Wheelset 25mm
Front hub
DT Swiss XRC 1200 Spline Wheelset 25mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
410,0
445,0
485,0
530,0
b
Seat tube angle
75,0º
74,75º
74,5º
74,25º
74,0º
c
Top tube length
534,0
571,0
598,0
625,0
652,0
d
Head tube length
100,0
90,0
90,0
100,0
110,0
e
Head tube angle
70,0º
70,25º
70,5º
70,75º
71,0º
f
Rake
42,0
51,0
52,0
50,0
52,0
g
Trail
85,0
80,0
77,0
78,0
74,0
h
Wheelbase
1046,0
1097,0
1121,0
1146,0
1171,0
i
Chainstay length
419,0
434,0
436,0
439,0
441,0
j
Bottom bracket drop
20,0
38,0
38,0
38,0
38,0
k
Stack height
555,0
579,0
580,0
591,0
601,0
l
Reach
384,0
412,0
436,0
458,0
479,0
m
Standover height
736,0
772,0
762,0
757,0
749,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
628,0
666,0
687,0
710,0
732,0
