Norco Revolver HT 1 120 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

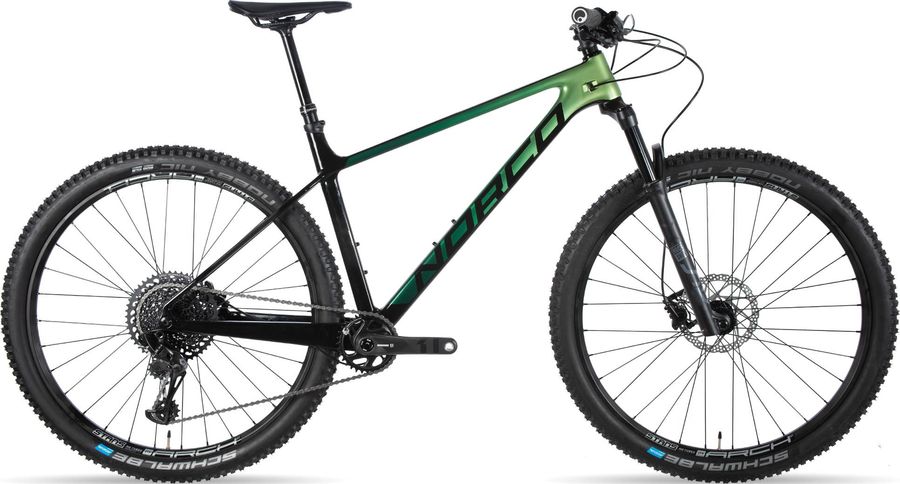

Norco Revolver HT 1 120 2020

About the Norco Revolver HT 1 120 2020

The Norco Revolver HT 1 120 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Revolver HT 1 120 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30 lock on
Components
Steam
Norco SL Alloy
Saddle
Fizik Taiga
Headset
FSA Internal Headset
Seatpost
X-Fusion Manic 125mm dropper, 31.6mm
Handlebar
Norco DB Lite, 760mm, 15mm rise
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
SRAM X1 Eagle DUB Carbon 32T
Shifter
SRAM GX Eagle 12spd
Bottom bracket
SRAM BB DUB PressFit
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon XC Race
Front suspension
RockShox SID Select DebonAir 1671 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SEL-C1
Name
SID Select
Spring
DebonAir
Travel (mm)
110mm, 120mm
Upper tube type
35mm tapered aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1671
Wheel size
29"
Wheels
Rims
Stans Arch S1 29"
Tires
Schwalbe Nobby Nic 29"x2.35" Snakeskin TL/Addix Spd Grip
Rear hub
DT Swiss 350, 12x148mm Boost
Front hub
DT Swiss 350, 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
485,0
510,0
b
Seat tube angle
75,3º
75,3º
75,3º
75,3º
c
Top tube length
572,0
602,0
635,0
667,0
d
Head tube length
90,0
90,0
100,0
110,0
e
Head tube angle
67,8º
67,8º
67,8º
67,8º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
97,0
97,0
97,0
97,0
h
Wheelbase
1111,0
1145,0
1182,0
1219,0
i
Chainstay length
411,0
414,3
417,7
421,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
596,0
596,0
605,0
615,0
l
Reach
413,0
443,0
473,0
503,0
m
Standover height
666,0
683,0
718,0
741,0
x
Bottom bracket height
321,0
321,0
321,0
321,0
y
Front center
706,0
736,0
770,0
803,0
