Norco Revolver HT 2 120 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

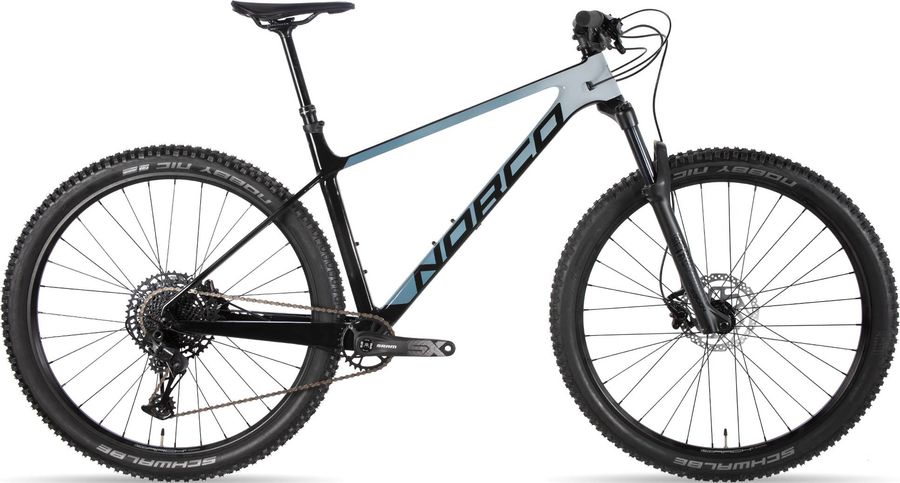

Norco Revolver HT 2 120 2020

About the Norco Revolver HT 2 120 2020

The Norco Revolver HT 2 120 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Revolver HT 2 120 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP lock on
Components
Steam
Norco SL Alloy
Saddle
Fizik Taiga
Headset
Sealed Cartridge Bearing
Seatpost
X-Fusion Manic 125mm dropper, 31.6mm
Handlebar
Norco DB Lite, 760mm, 15mm rise
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB 30T
Shifter
SRAM SX Eagle 12 speed
Bottom bracket
SRAM BB DUB PressFit
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon XC Race
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Stans Arch D 29"
Tires
Schwalbe Nobby Nic 29"x2.35" Snakeskin TL/Addix Spd Grip
Rear hub
Alloy, 12x148mm Boost
Front hub
Novatec, 15x110mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
485,0
510,0
b
Seat tube angle
75,3º
75,3º
75,3º
75,3º
c
Top tube length
572,0
602,0
635,0
667,0
d
Head tube length
90,0
90,0
100,0
110,0
e
Head tube angle
67,8º
67,8º
67,8º
67,8º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
97,0
97,0
97,0
97,0
h
Wheelbase
1111,0
1145,0
1182,0
1219,0
i
Chainstay length
411,0
414,3
417,7
421,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
596,0
596,0
605,0
615,0
l
Reach
413,0
443,0
473,0
503,0
m
Standover height
666,0
683,0
718,0
741,0
x
Bottom bracket height
321,0
321,0
321,0
321,0
y
Front center
706,0
736,0
770,0
803,0
