BikeWise

Norco Revolver HT 3 120 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

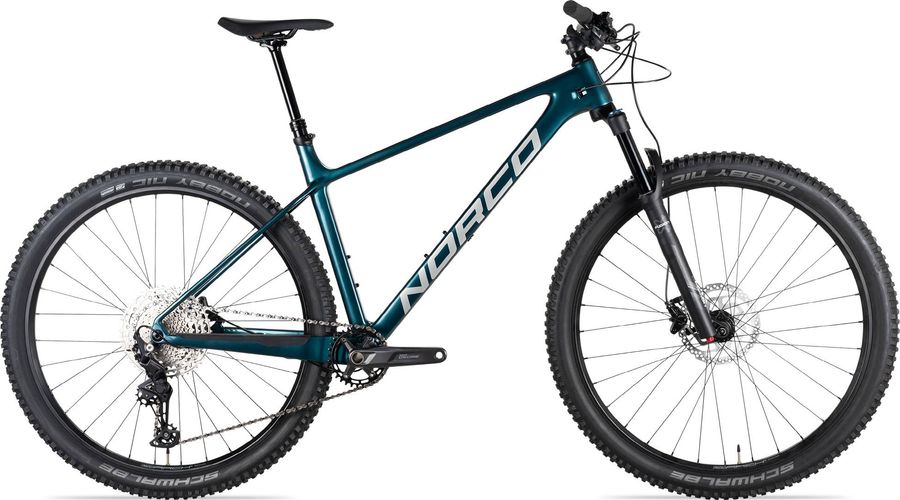

Norco Revolver HT 3 120 2021

About the Norco Revolver HT 3 120 2021

The Norco Revolver HT 3 120 2021 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Revolver HT 3 120 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP Lock-On
Components
Steam
Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp
Saddle
Fizik Alpaca Terra, Wingflex
Headset
Angular Cartridge Bearing
Seatpost
TranzX YSP18 Dropper, 31.6mm, 130mm (S, M), 150mm (L, XL)
Handlebar
Butted Alloy Lite, 760mm, 15mm Rise
Discs
Shimano ASMRT26M, 180mm
Brake lever
Shimano BRMT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano Deore FC-M5100-1, 32T, 170mm (S), 175mm (M, L, XL)
Shifter
Shimano Deore SL-M5100
Bottom bracket
Shimano BBMT500PA PF92
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
Carbon XC Race, Ride Aligned™
Front suspension
X-Fusion RC32
Wheels
Rims
Stans Arch D 29" 32H
Tires
Schwalbe Nobby Nic Performance 2.35", Folding Addix
Rear hub
Alloy RR, 12x148mm Boost, HG, 6 Bolt
Front hub
Sealed Bearing, 15x110mm Boost, 6 Bolt

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
485,0
510,0
b
Seat tube angle
75,3º
75,3º
75,3º
75,3º
c
Top tube length
572,0
602,0
635,0
667,0
d
Head tube length
90,0
90,0
100,0
110,0
e
Head tube angle
67,8º
67,8º
67,8º
67,8º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
97,0
97,0
97,0
97,0
h
Wheelbase
1111,0
1145,0
1182,0
1219,0
i
Chainstay length
411,0
414,3
417,7
421,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
596,0
596,0
605,0
615,0
l
Reach
413,0
443,0
473,0
503,0
m
Standover height
666,0
683,0
718,0
741,0
x
Bottom bracket height
321,0
321,0
321,0
321,0
y
Front center
706,0
736,0
770,0
803,0
