Norco Sasquatch 1 2018

MTB Fatbike
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
26"
Suspension type
Rigid

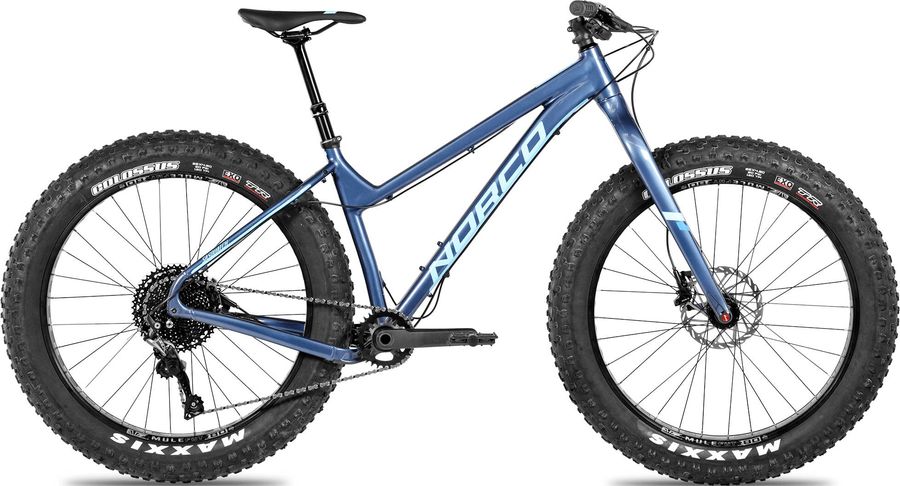

Norco Sasquatch 1 2018

About the Norco Sasquatch 1 2018

The Norco Sasquatch 1 2018 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Norco Sasquatch 1 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Stage 1 Lock-on Grips
Pedals
VP Nylon Flat Pedal
Components
Steam
TranzX 6061 Alloy 60mm/35mm
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
TranzX 125mm Dropper Post 31.6
Handlebar
TranzX 6061 DB Alloy 780mm
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Samox 30T Alloy Crank
Shifter
Shimano SLX 11spd I-Spec
Bottom bracket
External Threaded
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Front suspension
Norco Carbon 150x15 Fat Fork
Frame
Sasquatch X6 Alloy DB Fat Frame
Wheels
Rims
Sun Mulefut 80SL 26" 32H
Tires
Maxxis Colossus EXO/TR 26" x 4.8"
Rear hub
KT-M9CR 197x12
Front hub
KT M9CF 150x15 Sealed Hub

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
587,0
612,0
637,0
662,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
52,0
51,0
50,0
52,0
g
Trail
82,0
84,0
85,0
82,0
h
Wheelbase
1116,0
1142,0
1167,0
1194,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
599,0
608,0
618,0
627,0
l
Reach
402,0
425,0
447,0
469,0
m
Standover height
735,0
735,0
739,0
756,0
x
Bottom bracket height
328,5
328,5
328,5
328,5
y
Front center
685,0
710,0
736,0
762,0
