Norco Sasquatch 1 Rigid 2019

MTB Fatbike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
26"
Suspension type
Rigid
Norco Sasquatch 1 Rigid 2019

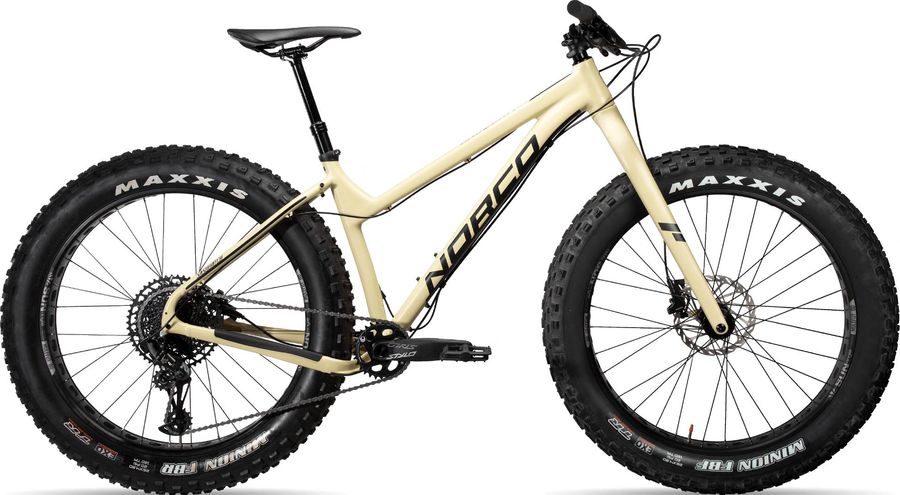

About the Norco Sasquatch 1 Rigid 2019

The Norco Sasquatch 1 Rigid 2019 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Norco Sasquatch 1 Rigid 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Pedals
VP Nylon Flat Pedals, 9/16"
Components
Steam
Norco 6061 Alloy 60mm/35mm
Saddle
Norco XC Saddle
Headset
FSA Internal Headset
Seatpost
TranzX YSP18JL Stealth Dropper, 130mm Travel, 31.6mm, 1x Lever
Handlebar
Norco 6061 DB Alloy 780mm
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Truvativ Stylo 6K FAT5, 170mm (S) | 175mm (M/L/XL), 30T
Shifter
Rear: SRAM NX Eagle, 12 Speed, Front: -
Bottom bracket
SRAM DUB BB, Threaded BSA 100mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Front suspension
Norco Carbon Fat Fork, 15x150mm TA, 51mm Offset
Frame
Norco Sasquatch, Aluminum, 12x197mm TA Dropouts
Wheels
Rims
Sun Mulefüt 80SL, 32 Hole, 80mm Internal Width
Tires
Maxxis Minion FBF, 26x4.8", EXO/TR, Folding
Rear hub
KT-M9CR, 12x197mm
Front hub
KT M9CF 150x15 Sealed Hub

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
587,0
612,0
637,0
662,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
52,0
51,0
50,0
52,0
g
Trail
82,0
84,0
85,0
82,0
h
Wheelbase
1116,0
1142,0
1167,0
1194,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
599,0
608,0
618,0
627,0
l
Reach
402,0
425,0
447,0
469,0
m
Standover height
735,0
735,0
739,0
756,0
x
Bottom bracket height
328,5
328,5
328,5
328,5
y
Front center
685,0
710,0
736,0
762,0
