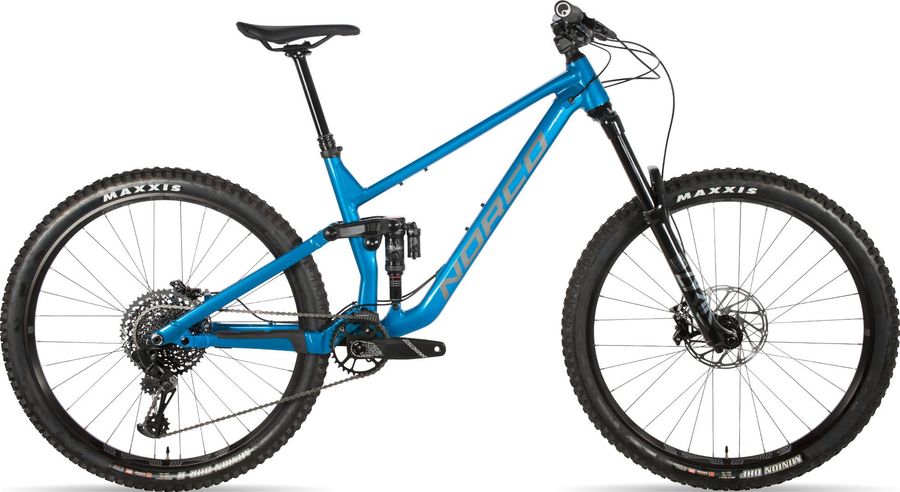

Norco Sight A1 27.5 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Norco Sight A1 27.5 2020

About the Norco Sight A1 27.5 2020

The Norco Sight A1 27.5 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight A1 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 EVO black lock on
Components
Steam
Norco 40mm reach, 35mm clamp
Saddle
Ergon SM10 Sport
Headset
FSA #57 E tapered internal, Sealed Bearing 1.5" to 1-1/8"
Seatpost
TransX YSP-39JL Dropper S - 150mm, M/L - 170mm, XL - 200mm, 1x lever
Handlebar
Deity Ridgeline 35, 800mm, 25mm rise
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 6K Eagle, 29" - 32T, 27.5" - 34T, 170mm
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB
Chain tensioner
e*thirteen TRS Race, w/ upper guide
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Sight Aluminum 150mm Travel
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Front suspension
RockShox Lyrik Ultimate DebonAir 2003 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-ULT-C2
Name
Lyrik Ultimate
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, RC2 damper, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Wheels
Rims
e*thirteen LG1 EN
Tires
Maxxis Minion DHF 3C 2.5” WT 3C Maxx Terra EXO+ TR Folding
Rear hub
DT Swiss 350 110x148mm, XD driver
Front hub
DT Swiss 350 15x110mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
465,0
b
Seat tube angle
77,0º
77,3º
77,7º
78,0º
c
Top tube length
564,0
592,0
621,0
649,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
137,0
137,0
137,0
137,0
h
Wheelbase
1184,0
1224,0
1263,0
1303,0
i
Chainstay length
434,0
439,0
444,0
449,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
589,0
598,0
607,0
616,0
l
Reach
429,0
459,0
489,0
519,0
m
Standover height
672,0
677,0
685,0
706,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
750,0
785,0
819,0
854,0
