Norco Sight A1 29 2021

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

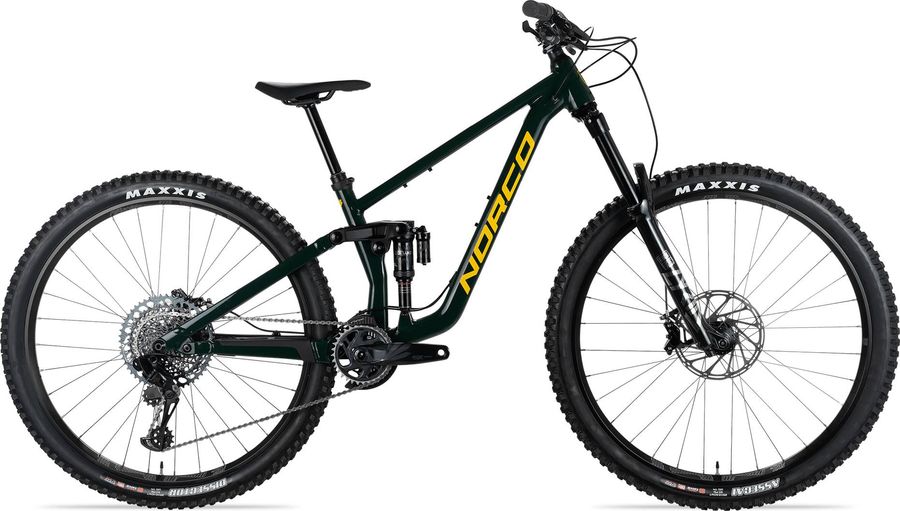

Norco Sight A1 29 2021

About the Norco Sight A1 29 2021

The Norco Sight A1 29 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight A1 29 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)
Components
Steam
Alloy, 40mm Length, 35mm Clamp
Saddle
Fizik Alpaca Terra, Wingflex
Headset
FSA #57 E Sealed Bearing
Seatpost
One Up Adjustable Dropper, 34.9mm, 150mm (S), 180mm (M, L), 210mm (XL)
Handlebar
Deity Ridgeline, 800mm, 25mm Rise
Discs
SRAM Centerline, 200mm
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM GX Eagle, 34T (27,5), 32T (29), 170mm
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB, BSA Threaded
Chain tensioner
e*thirteen TRS Plus Aluminum, Bash
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum All-Mountain, 150mm Travel, Ride Aligned™, 27.5" and 29" Options
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Front suspension
RockShox Lyrik Ultimate RC2
Wheels
Rims
e*thirteen LG1 EN, 32H
Tires
Maxxis Assegai 2.5" 3C Maxx Terra, EXO+, TR
Rear hub
DT Swiss 350, 12x148mm Boost, XD, 6 Bolt, 36T Engagement
Front hub
DT Swiss 350, 15x110mm Boost, 6 Bolt

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
465,0
b
Seat tube angle
77,0º
77,3º
77,7º
78,0º
c
Top tube length
570,0
597,0
625,0
653,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
136,0
136,0
136,0
136,0
h
Wheelbase
1191,0
1226,0
1266,0
1305,0
i
Chainstay length
434,0
439,0
444,0
449,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
616,0
616,0
625,0
634,0
l
Reach
429,0
459,0
489,0
519,0
m
Standover height
682,0
694,0
702,0
716,0
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
758,0
788,0
823,0
857,0
