Norco Sight A2 Womens 27.5 2018

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

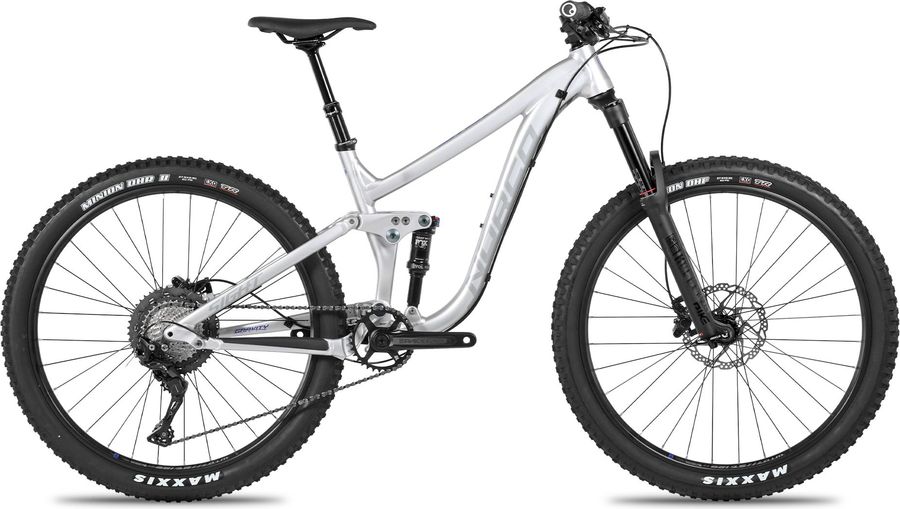

Norco Sight A2 Womens 27.5 2018

About the Norco Sight A2 Womens 27.5 2018

The Norco Sight A2 Womens 27.5 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Sight A2 Womens 27.5 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE 10 slim lock on grip
Components
Steam
Alloy 6061 60mm stem w/35mm bar bore
Saddle
WTB Women's Deva Mtn
Headset
FSA #57 E ( tapered internal ) 1.5" to 1-1/8"
Seatpost
JD Trans X post 100mm XS, S, 125mm M, 31.6mm
Handlebar
Norco 20 mm rise 6061 800mm, 35mm bar bore
Brake lever
Shimano Deore
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
Race Face Aeffect w/ steel 32T ring
Shifter
Shimano XT SL-M8000 11 speed
Bottom bracket
Race Face BB for 73mm threaded BB shell (comes with crank)
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC 11v
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Sight aluminum 650B 140mm travel XS, SM, M
Rear suspension
Fox Float EVOL Performace Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
WTB STP I29 650B TCS rim, 29mm inner
Tires
Maxxis Minion DHF 650Bx2.3 folding EXO/ dual compound
Rear hub
Shimano Deore XT boost, center lock rear hub
Front hub
Novatec 110x15 sealed bearing disc hub

Geometry

Size XS SM MD
a
Seat tube length
380,0
405,0
435,0
b
Seat tube angle
75,42º
74,95º
74,5º
c
Top tube length
529,0
559,0
589,0
d
Head tube length
90,0
100,0
110,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
g
Trail
107,0
107,0
107,0
h
Wheelbase
1091,0
1123,0
1154,0
i
Chainstay length
417,0
422,0
427,0
j
Bottom bracket drop
15,0
15,0
15,0
k
Stack height
577,0
586,0
595,0
l
Reach
378,0
401,0
423,0
m
Standover height
769,0
764,0
769,0
x
Bottom bracket height
339,0
339,0
339,0
y
Front center
675,0
701,0
728,0
