BikeWise

Norco Sight A2 Women's 27.5 2020

Women's Bike
MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

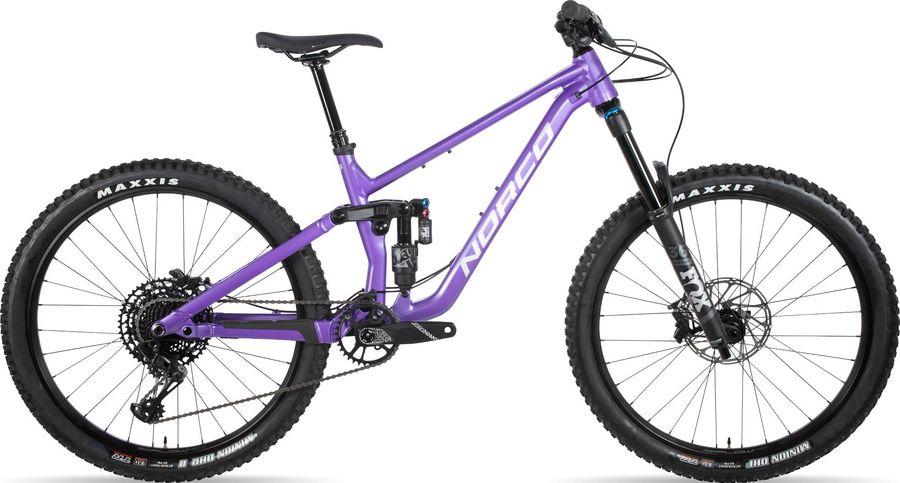

Norco Sight A2 Women's 27.5 2020

About the Norco Sight A2 Women's 27.5 2020

The Norco Sight A2 Women's 27.5 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight A2 Women's 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater lock on
Components
Steam
Norco 40mm reach, 35mm clamp
Saddle
WTB Deva
Headset
FSA #57 E tapered internal, Sealed Bearing 1.5" to 1-1/8"
Seatpost
TransX YSP-39JL Dropper S - 150mm, M/L - 170mm, XL - 200mm, 1x lever
Handlebar
Norco 6061 800mm, S/M - 20mm rise, L/XL - 30mm rise
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 6K Eagle, 29" - 32T, 27.5" - 34T, 170mm
Shifter
SRAM NX Eagle
Bottom bracket
SRAM DUB
Chain tensioner
GW 1x Flip Guide, ISCG05
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Sight Aluminum 150mm Travel
Front suspension
Fox 36 Float Rhythm
Rear suspension
Fox Float X2 Performance
Wheels
Rims
Stans Flow D, black 32H,
Tires
Maxxis Minion DHF 2.5” WT EXO TR Folding
Rear hub
DT Swiss 370 12x148mm Boost
Front hub
DT Swiss 370, 15x110mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
465,0
b
Seat tube angle
77,0º
77,3º
77,7º
78,0º
c
Top tube length
564,0
592,0
621,0
649,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
137,0
137,0
137,0
137,0
h
Wheelbase
1184,0
1224,0
1263,0
1303,0
i
Chainstay length
434,0
439,0
444,0
449,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
589,0
598,0
607,0
616,0
l
Reach
429,0
459,0
489,0
519,0
m
Standover height
672,0
677,0
685,0
706,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
750,0
785,0
819,0
854,0
