Norco Sight A3 27.5 2021

MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

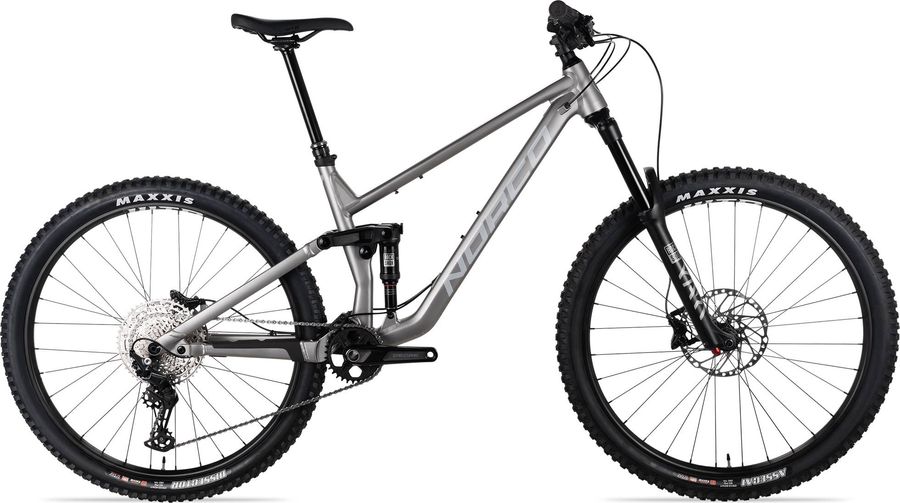

Norco Sight A3 27.5 2021

About the Norco Sight A3 27.5 2021

The Norco Sight A3 27.5 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight A3 27.5 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Thrice, Lock-On, Thin (S, M), Thick (L, XL)
Components
Steam
Aluminum, 40mm Length, 35mm Clamp
Saddle
WTB Volt 250 Sport
Headset
FSA #57 E Sealed Bearing
Seatpost
TranzX YS105 Dropper, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)
Handlebar
6061 Aluminum, 760mm (S), 780mm (M), 800mm (L, XL), 20mm Rise (S, M), 30mm Rise (L, XL)
Discs
Shimano RT-64, 200mm
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano Deore FC-MT6120-1 12spd
Shifter
Shimano Deore SL-M6100-R
Bottom bracket
Shimano Sealed Bearing, BSA Threaded
Chain tensioner
GW 1x Flip Guide
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Aluminum All-Mountain, 150mm Travel, Ride Aligned™, 27.5" and 29" Options
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
WTB ST I29 TCS 2.0, 32H
Tires
Maxxis Assegai 2.5" 3C Maxx Terra, EXO+, TR
Rear hub
Shimano FH-MT510, 12x148mm Boost, Micro Spline, Center Lock
Front hub
Shimano HB-MT410 15x110 Boost, Center Lock

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
465,0
b
Seat tube angle
77,0º
77,3º
77,7º
78,0º
c
Top tube length
564,0
592,0
621,0
649,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
137,0
137,0
137,0
137,0
h
Wheelbase
1184,0
1224,0
1263,0
1303,0
i
Chainstay length
434,0
439,0
444,0
449,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
589,0
598,0
607,0
616,0
l
Reach
429,0
459,0
489,0
519,0
m
Standover height
672,0
677,0
685,0
706,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
750,0
785,0
819,0
854,0
