BikeWise

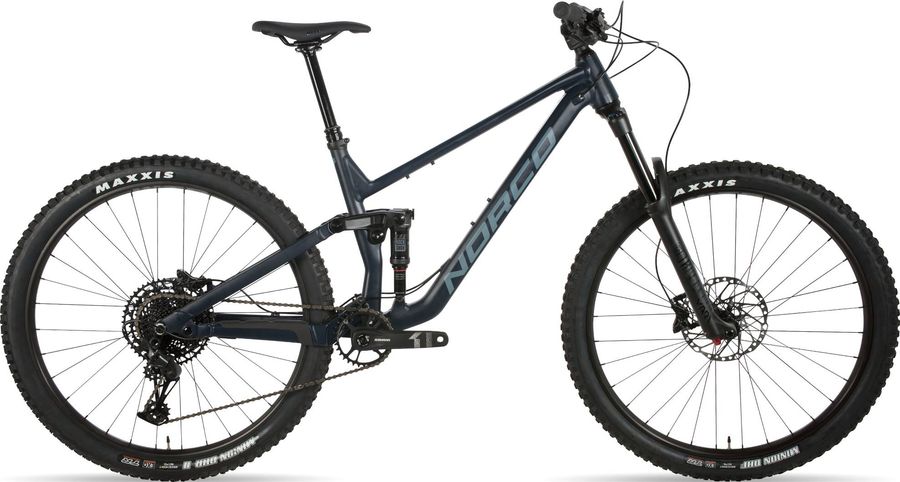

Norco Sight A3 29 2020

MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Norco Sight A3 29 2020

About the Norco Sight A3 29 2020

The Norco Sight A3 29 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight A3 29 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater lock on
Components
Steam
Norco 40mm reach, 35mm clamp
Saddle
WTB Volt 250 Sport
Headset
FSA #57 E tapered internal, Sealed Bearing 1.5" to 1-1/8"
Seatpost
TransX YSP-39JL Dropper S - 150mm, M/L - 170mm, XL - 200mm, 1x lever
Handlebar
Norco 6061 800mm, S/M - 20mm rise, L/XL - 30mm rise
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
SRAM Eagle X1 DUB, 29” - 32T, 27.5” - 34T, 170mm
Shifter
SRAM SX Eagle
Bottom bracket
SRAM PowerSpline BB
Chain tensioner
GW 1x Flip Guide, ISCG05
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Sight Aluminum 150mm Travel
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
WTB ST I29 TCS 2.0
Tires
Maxxis Minion DHF 2.5” WT, EXO TR Folding
Rear hub
Shimano Deore 12x148mm Boost
Front hub
Shimano Deore 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
465,0
b
Seat tube angle
77,0º
77,3º
77,7º
78,0º
c
Top tube length
570,0
597,0
625,0
653,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
136,0
136,0
136,0
136,0
h
Wheelbase
1191,0
1226,0
1266,0
1305,0
i
Chainstay length
434,0
439,0
444,0
449,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
616,0
616,0
625,0
634,0
l
Reach
429,0
459,0
489,0
519,0
m
Standover height
682,0
-
702,0
716,0
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
758,0
788,0
823,0
857,0
