BikeWise

Norco Sight C2 27.5 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
130mm

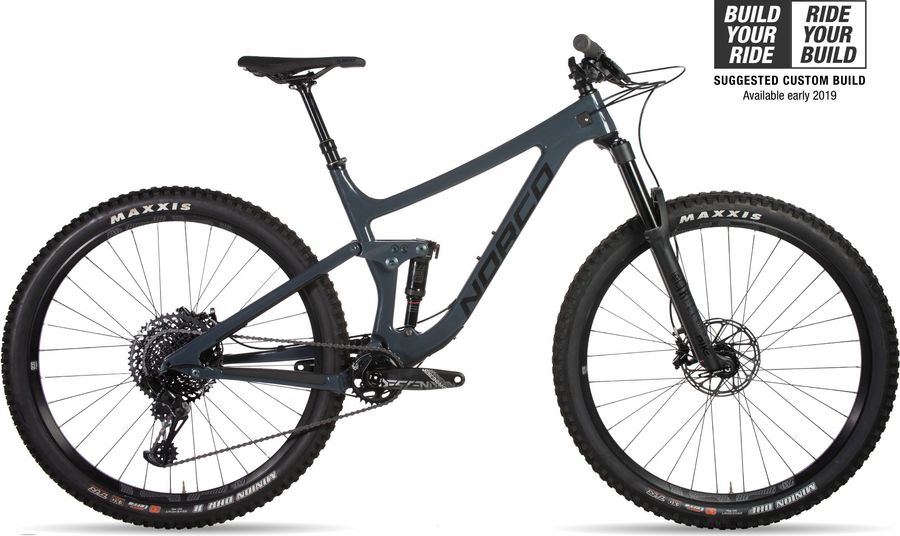

Norco Sight C2 27.5 2019

About the Norco Sight C2 27.5 2019

The Norco Sight C2 27.5 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight C2 27.5 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Stage 1 lock on grip
Components
Steam
Race Face Aeffect R 50mm ext, 35mm bar bore
Saddle
SDG Fly Mtn with chromoly rails
Headset
FSA No 42 ACB 1.5” to 1-1/8” w/black FSA logos
Seatpost
JD TransX YSP-12JL Dropper 80mm XS, 100 S, 125 M/150 L/X, 31.6, 1x lever
Handlebar
Race Face Turbine R 35mm, 800mm, 20mm rise
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
SRAM/Truvativ Decendent Eagle 7K Boost DUB crank w/30T AL
Shifter
SRAM GX Eagle 12 speed
Bottom bracket
SRAM DUB Pressfit BB 92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Sight carbon frame, 130mm 29, 140mm 650B rear
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
E-13 TRS aluminum rim, 30mm inner
Tires
Maxxis Minion DHF 29x2.5WT EXO/ 3C folding bead
Spokes
DT Swiss Competition butted 1.8/1.6/1.8, black stainless steel with prolock
Rear hub
DT 370 148x12 Boost sealed w/XD driver
Front hub
DT 370 110x15 sealed bearing disc hub

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
405,0
435,0
470,0
510,0
b
Seat tube angle
74,8º
74,4º
74,0º
73,7º
73,3º
c
Top tube length
532,0
561,0
590,0
620,0
649,0
d
Head tube length
90,0
100,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
43,0
43,0
g
Trail
119,0
119,0
119,0
120,0
120,0
h
Wheelbase
1095,0
1127,0
1158,0
1190,0
1221,0
i
Chainstay length
417,0
422,0
427,0
432,0
437,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
12,0
k
Stack height
578,0
587,0
596,0
606,0
615,0
l
Reach
374,0
397,0
419,0
442,0
464,0
m
Standover height
774,0
769,0
774,0
785,0
792,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
342,0
y
Front center
678,0
705,0
731,0
758,0
784,0
