BikeWise

Norco Sight C2 Womens 27.5 2018

Women's Bike
MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

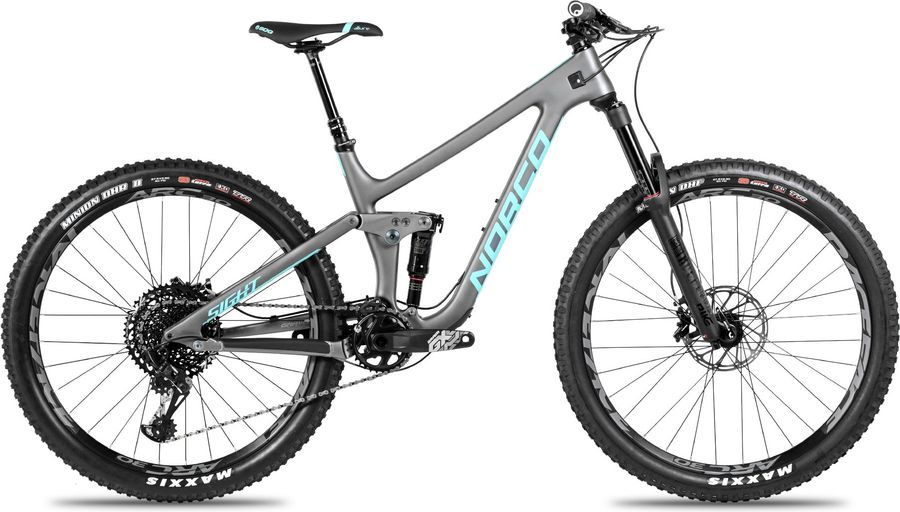

Norco Sight C2 Womens 27.5 2018

About the Norco Sight C2 Womens 27.5 2018

The Norco Sight C2 Womens 27.5 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight C2 Womens 27.5 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE 10 slim lock on grip
Components
Steam
Race Face Aeffect R 60mm ext, 35mm bar bore
Saddle
SDG Women's Allure Mtn w/chromoly rails
Headset
FSA No 42 ACB 1.5" to 1-1/8"
Seatpost
Rockshox Reverb Stealth, new lever, 100mm XS,SM, 125mm M, 31.6mm
Handlebar
Race Face Turbine R 35mm, 800mm, 20mm rise
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
SRAM GX Eagle Boost w/32T direct mount
Shifter
SRAM GX1 12 speed
Bottom bracket
SRAM GXP Pressfit 92 BB
Chain tensioner
One Up S-3 mount upper guide
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Sight carbon 650 140mm travel XS,SM,M
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Race Face AR 30, 30mm inner
Tires
Maxxis Minion DHF 650Bx2.3 EXO/ 3C folding bead
Rear hub
DT 350 148x12 Boost sealed w/XD driver
Front hub
DT 350 110x15 sealed bearing disc hub

Geometry

Size XS SM MD
a
Seat tube length
380,0
405,0
435,0
b
Seat tube angle
75,4º
75,0º
74,5º
c
Top tube length
529,0
559,0
589,0
d
Head tube length
90,0
100,0
110,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
44,0
45,0
44,0
g
Trail
107,0
106,0
107,0
h
Wheelbase
1091,0
1123,0
1154,0
i
Chainstay length
417,0
422,0
427,0
j
Bottom bracket drop
15,0
15,0
15,0
k
Stack height
575,0
584,0
593,0
l
Reach
379,0
401,0
424,0
m
Standover height
769,0
764,0
769,0
x
Bottom bracket height
339,0
339,0
339,0
y
Front center
675,0
701,0
728,0
