BikeWise

Norco Sight C3 Womens 27.5 2020

Women's Bike
MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

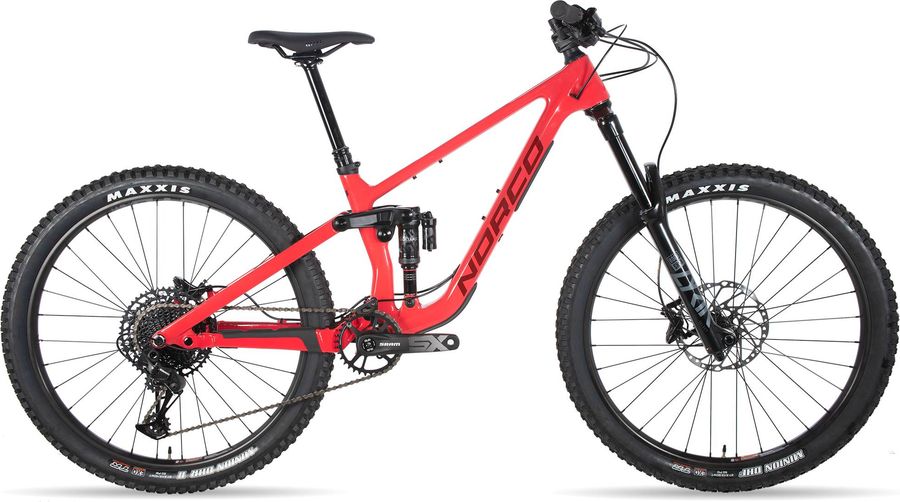

Norco Sight C3 Womens 27.5 2020

About the Norco Sight C3 Womens 27.5 2020

The Norco Sight C3 Womens 27.5 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight C3 Womens 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater lock on
Components
Steam
Norco 40mm reach CNC, 35mm clamp
Saddle
WTB Deva
Headset
FSA #57 E tapered internal, Sealed Bearing 1.5" to 1-1/8"
Seatpost
TransX YSP-39JL Dropper S - 150mm, M/L - 170mm, XL - 200mm, 1x lever
Handlebar
Norco 6061, 800mm, S/M - 20mm rise, L/XL - 30mm rise
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Chain
SRAM PC 12
Crankset
SRAM SX Eagle 30T Steel 29” - 32T, 27.5" - 34T, 170mm
Shifter
SRAM SX Eagle
Bottom bracket
SRAM DUB BB
Chain tensioner
GW 1x Flip Guide
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Front Triangle, Seatstays, Aluminum Chainstays, 150mm Travel 27.5 & 29” Wheels
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
WTB ST I29 TCS 2.0
Tires
Maxxis Minion DHF 2.5” WT, EXO TR, folding
Rear hub
Shimano Deore 148x12mm
Front hub
Shimano Deore 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
465,0
b
Seat tube angle
77,0º
77,3º
77,7º
78,0º
c
Top tube length
564,0
592,0
621,0
649,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
137,0
137,0
137,0
137,0
h
Wheelbase
1184,0
1224,0
1263,0
1303,0
i
Chainstay length
434,0
439,0
444,0
449,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
589,0
598,0
607,0
616,0
l
Reach
429,0
459,0
489,0
519,0
m
Standover height
672,0
681,0
687,0
705,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
750,0
785,0
819,0
854,0
