Norco Sight VLT A2 29 2021

E-Bike
MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

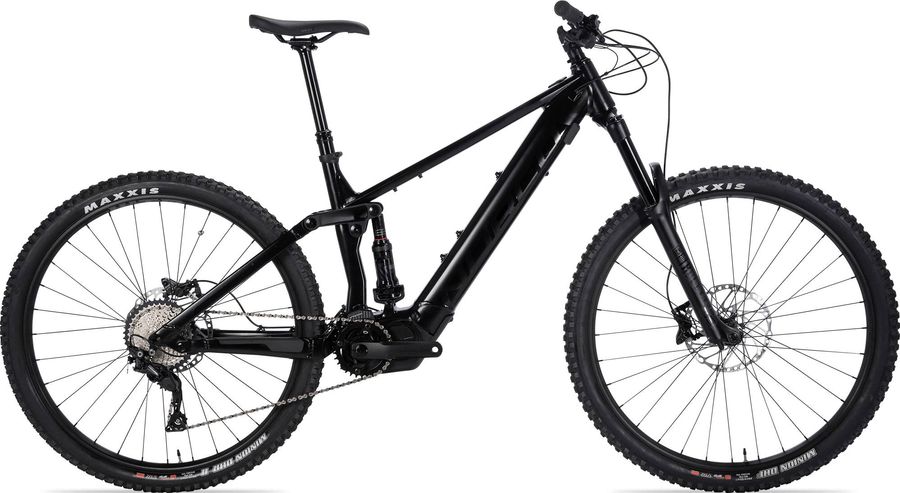

Norco Sight VLT A2 29 2021

About the Norco Sight VLT A2 29 2021

The Norco Sight VLT A2 29 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight VLT A2 29 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater lock on
Components
Steam
Norco 40mm, 35mm clamp
Saddle
WTB Volt Sport
Battery
In-Tube 500Wh (range extender compatible)
Headset
FSA No.57 block lock sealed bearing
Seatpost
TranzX YSP-39JL, S - 150mm, M/L- 170mm, XL - 200mm, 1x lever
Handlebar
Norco 6061 800mm, 20mm rise
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Aluminum 165mm, 32T, Shimano Spline
Motor
Shimano STEPS E7000
Shifter
Shimano Deore SL 6000 10 speed
Chain tensioner
e*thirteen Compact upper Slider, Top guide only
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Aluminum, 150mm Travel
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Front suspension
RockShox 35 Gold
Wheels
Rims
WTB ST I29 TCS 2.0, 29"
Tires
Maxxis Minion DHF WT 29x2.5” MaxxGRIP DD TR
Rear hub
Shimano Deore HB-6010, 12x148mm Boost
Front hub
Shimano Deore HB-6010. 15x110mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
485,0
b
Seat tube angle
78,0º
78,3º
78,7º
79,0º
c
Top tube length
559,0
585,0
613,0
642,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
138,0
138,0
138,0
138,0
h
Wheelbase
1220,0
1250,0
1284,0
1318,0
i
Chainstay length
462,0
462,0
462,0
462,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
616,0
616,0
625,0
634,0
l
Reach
429,0
459,0
489,0
519,0
m
Standover height
695,0
703,0
701,0
735,0
x
Bottom bracket height
354,0
354,0
354,0
354,0
y
Front center
759,0
789,0
823,0
857,0
