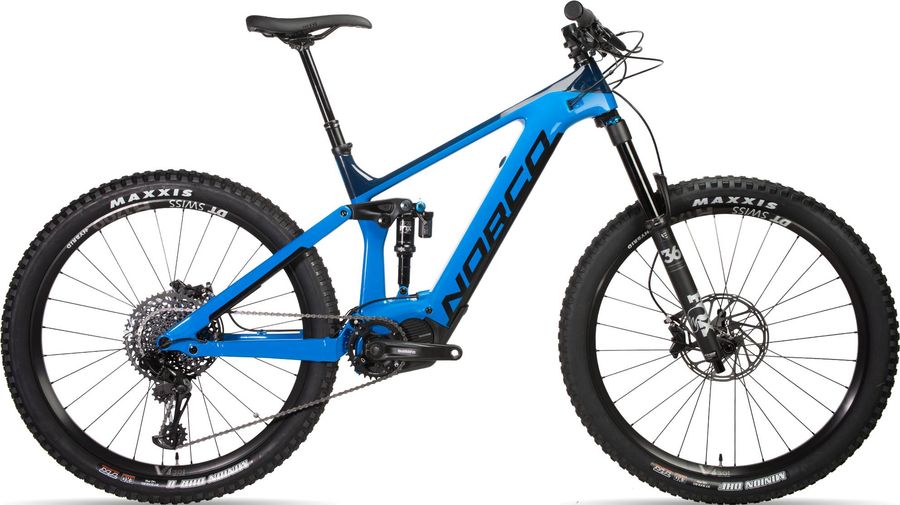

Norco Sight VLT C1 27.5 2020

E-Bike
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Norco Sight VLT C1 27.5 2020

About the Norco Sight VLT C1 27.5 2020

The Norco Sight VLT C1 27.5 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.


Features

The Norco Sight VLT C1 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 EVO lock on
Components
Steam
Norco 50mm, 35mm bore
Saddle
Ergon SM-10 E-Mountain Sport
Battery
In-Tube 630Wh
Headset
Acros block lock sealed bearing
Seatpost
BikeYoke Revive S,M – 125mm, L 160mm, Triggy lever
Handlebar
Deity Ridgeline 35, 800mm, 25mm rise
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Shimano Deore XT Hollowtech II, FC-M8050, 165mm, 34T
Motor
Shimano STEPS E8000
Shifter
SRAM GX Eagle 12 speed
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon 27.5 150mm Travel
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
DT Swiss E 1700 Hybrid E-bike rated wheelset
Tires
Maxxis Minion DHF WT 27.5x2.5” Maxx GRIP/DD/TR
Rear hub
DT Swiss E1700 Hybrid sealed bearing 12x148mm Boost, XD driver
Front hub
DT Swiss E-1700 sealed bearing 15x110mm Boost

Geometry

Size SM MD LG
a
Seat tube length
405,0
435,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
575,0
608,0
640,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
37,0
37,0
37,0
g
Trail
120,0
120,0
120,0
h
Wheelbase
1155,0
1189,0
1223,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
15,0
15,0
15,0
k
Stack height
603,0
612,0
622,0
l
Reach
415,0
445,0
475,0
m
Standover height
705,0
712,0
733,0
x
Bottom bracket height
345,0
345,0
345,0
y
Front center
710,0
744,0
778,0
