Norco Sight VLT C3 27.5 2021

E-Bike
MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

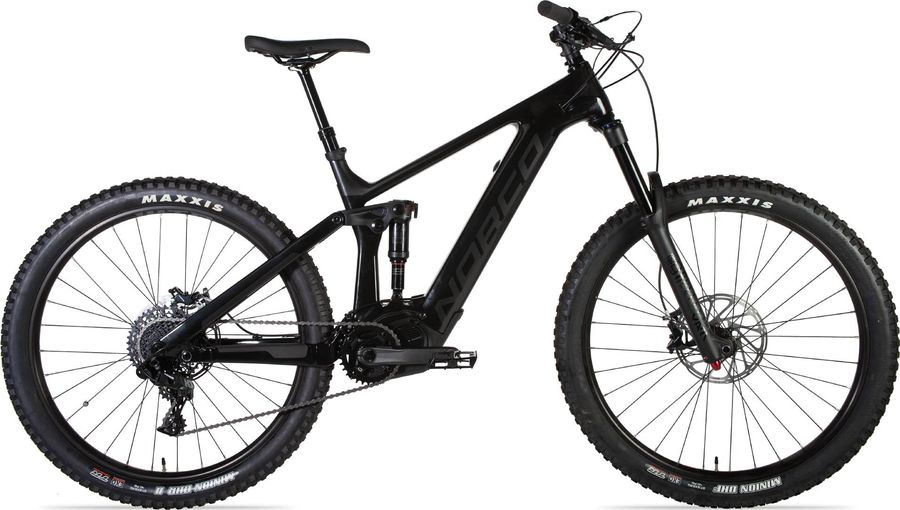

Norco Sight VLT C3 27.5 2021

About the Norco Sight VLT C3 27.5 2021

The Norco Sight VLT C3 27.5 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Sight VLT C3 27.5 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 EVO lock on
Components
Steam
Norco 50mm, 35mm bore
Saddle
WTB Volt Sport
Battery
In-Tube 500Wh
Headset
FSA No.57 sealed bearing
Seatpost
TranzX YSP-23JL, S - 100mm, M - 125mm, L - 150mm, 1x lever
Handlebar
Norco 6061 800mm, 20mm rise, 35mm bore
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano FC-E8000, 165mm, 34T SRAM Eagle Chainring
Motor
Shimano STEPS E7000
Shifter
SRAM SX Eagle Trigger 12 speed
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon 27.5 150mm Travel
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
WTB ST I29 TCS 2.0, 650b
Tires
Maxxis Minion DHF WT 27.5x2.5” Maxx GRIP/DD/TR
Rear hub
Shimano Deore HB-6010, 12x148mm Boost
Front hub
Shimano Deore HB-6010 15x110mm Boost

Geometry

Size SM MD LG
a
Seat tube length
405,0
435,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
575,0
608,0
640,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
37,0
37,0
37,0
g
Trail
120,0
120,0
120,0
h
Wheelbase
1155,0
1189,0
1223,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
15,0
15,0
15,0
k
Stack height
603,0
612,0
622,0
l
Reach
415,0
445,0
475,0
m
Standover height
705,0
712,0
733,0
x
Bottom bracket height
345,0
345,0
345,0
y
Front center
710,0
744,0
778,0
