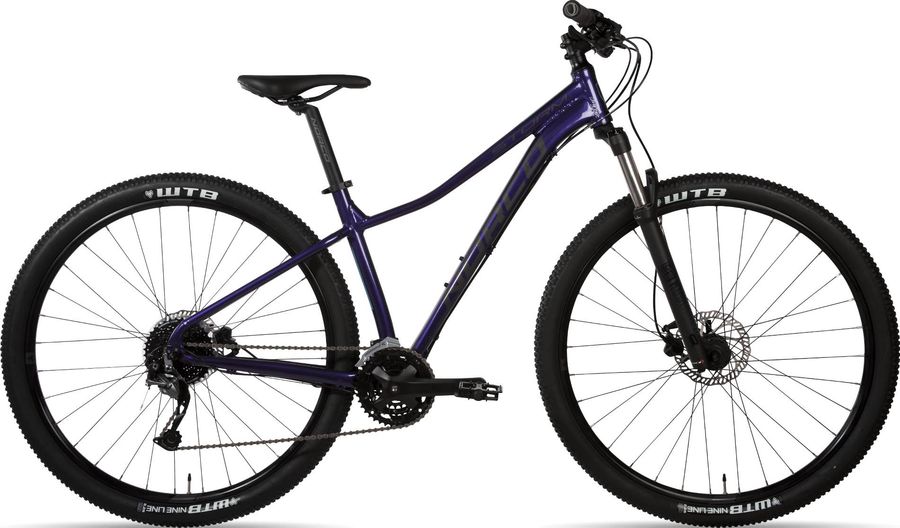

Norco Storm 1 Women 27.5 2019
The Norco Storm 1 Women 27.5 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Norco Storm 1 Women 27.5 2019
The Norco Storm 1 Women 27.5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Norco, Black
|
|---|---|
|
Pedals
|
Feimin Alloy
|
|
Steam
|
Alloy 60mm x 31.8
|
|---|---|
|
Saddle
|
Norco XC Saddle
|
|
Headset
|
Zero Stack Headset
|
|
Seatpost
|
Norco Alloy, 31.6mm
|
|
Handlebar
|
X6 Alloy 720mm x 31.8
|
|
Brake lever
|
Tektro HD-M275
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Prowheel MPE-901, 170mm (XXS/XS/S) | 175mm (M), 40/30/22T
|
|---|---|
|
Shifter
|
Rear: Shimano Acera SL-M3000R, 9 Speed, Front: Shimano Acera SL-M3000, 3 Speed
|
|
Bottom bracket
|
Cartridge BB, Threaded BSA 73mm
|
|
Front derailleur
|
Shimano Altus FD-M2000, 3 Speed
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC Z99
|
|
Rear derailleur
|
Shimano Alivio RD-M4000
|
|
Frame
|
Norco Storm, Aluminum, 9x135mm QR Dropouts
|
|---|---|
|
Front suspension
|
RockShox 30 Silver
Coil, Solo Air
|
|
|
|
|
Rims
|
WTB SX19, 32 Hole, 19mm Internal Width
|
|---|---|
|
Tires
|
WTB Nineline, 29x2.25" | WTB Beeline, 27.5x2.25"
|
|
Rear hub
|
Joytech D342TSE Disc, 10x135mm QR
|
|
Front hub
|
Joytech D341DSE Alloy Disc QR
|
Geometry
| Size | XXS | XS | SM |
|---|---|---|---|
|
a
Seat tube length
|
340,0
|
390,0
|
430,0
|
|
b
Seat tube angle
|
73,5º
|
73,1º
|
72,7º
|
|
c
Top tube length
|
506,0
|
531,0
|
561,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
68,5º
|
68,75º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
95,0
|
93,0
|
91,0
|
|
h
Wheelbase
|
1020,0
|
1039,0
|
1062,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
596,0
|
607,0
|
617,0
|
|
l
Reach
|
327,0
|
344,0
|
366,0
|
|
m
Standover height
|
722,0
|
715,0
|
724,0
|
|
x
Bottom bracket height
|
295,0
|
295,0
|
295,0
|
|
y
Front center
|
600,0
|
618,0
|
642,0
|
