Norco Storm 2 27.5 2019

MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

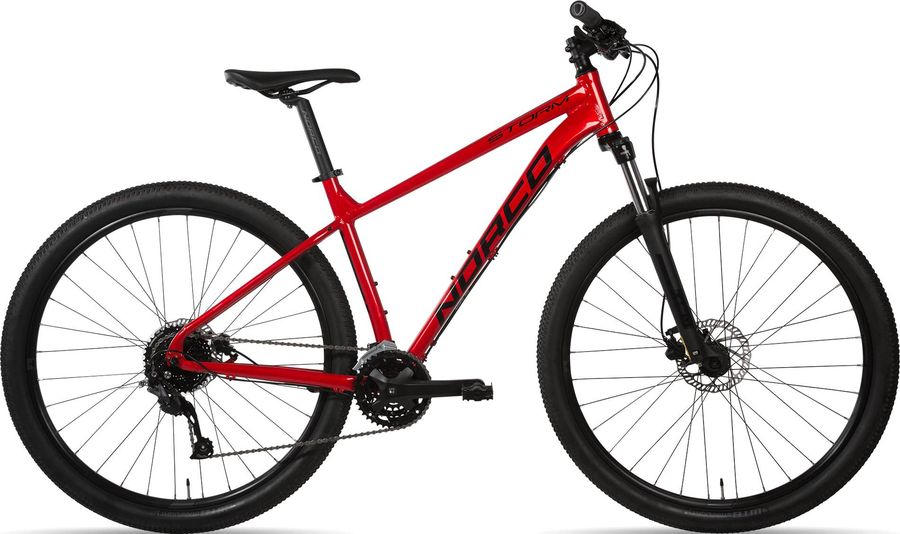

Norco Storm 2 27.5 2019

About the Norco Storm 2 27.5 2019

The Norco Storm 2 27.5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes.

Features

The Norco Storm 2 27.5 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco, Black
Pedals
Steel Cage Pedal
Components
Steam
Alloy 60mm x 31.8
Saddle
Norco XC Saddle
Headset
Zero Stack Headset
Seatpost
Norco Alloy, 31.6mm
Handlebar
X6 Alloy 720mm x 31.8
Brake lever
Tektro HD-M275
Brakes
Tektro HD-M275
Drivetrain
Crankset
Prowheel MPE-901, 170mm (XXS/XS/S) | 175mm (M/L/XL), 40/30/22T
Shifter
Rear: Shimano Altus SL-M2000, 9 Speed, Front: Shimano Altus SL-M2000, 3 Speed
Bottom bracket
Cartridge BB, Threaded BSA 73mm
Front derailleur
Shimano Altus FD-M2000, 3 Speed
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC Z99
Rear derailleur
Shimano Altus RD-M2000 SGS 9s
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M2000
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Norco Storm, Aluminum, 9x135mm QR Dropouts
Front suspension
SR Suntour XCM
Wheels
Rims
WTB SX19, 32 Hole, 19mm Internal Width
Tires
WTB Nineline, 29x2.25" | WTB Beeline, 27.5x2.25"
Rear hub
Joytech D342TSE Disc, 10x135mm QR
Front hub
Joytech D341DSE Alloy Disc QR

Geometry

Size XXS XS SM MD
a
Seat tube length
340,0
390,0
430,0
470,0
b
Seat tube angle
73,5º
73,1º
72,7º
72,3º
c
Top tube length
506,0
531,0
561,0
591,0
d
Head tube length
110,0
120,0
130,0
145,0
e
Head tube angle
68,5º
68,75º
69,0º
69,25º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
95,0
93,0
91,0
90,0
h
Wheelbase
1020,0
1039,0
1062,0
1087,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
55,0
55,0
55,0
50,0
k
Stack height
596,0
607,0
617,0
627,0
l
Reach
327,0
344,0
366,0
388,0
m
Standover height
722,0
715,0
724,0
767,0
x
Bottom bracket height
295,0
295,0
295,0
300,0
y
Front center
600,0
618,0
642,0
666,0
