Norco Storm 2 27.5 2021

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

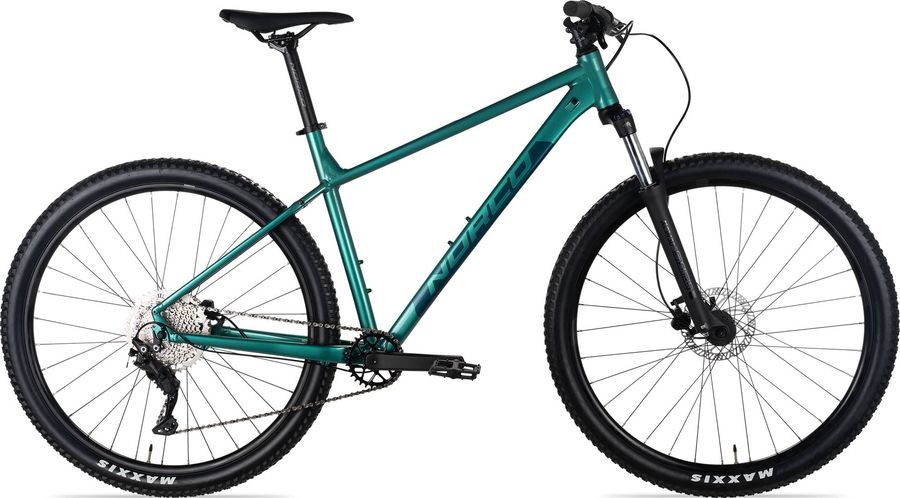

Norco Storm 2 27.5 2021

About the Norco Storm 2 27.5 2021

The Norco Storm 2 27.5 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing e hydraulic disc brakes.

Features

The Norco Storm 2 27.5 2021 has 2 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP Lock-On
Pedals
VP Nylon Flat
Components
Steam
Alloy 60mm, 31.8mm Clamp
Saddle
Norco XC
Headset
Zero Stack
Seatpost
Alloy 31.6mm
Handlebar
X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
Discs
Tektro 160mm
Brake lever
Tektro HD-M275, HD-M276 Short Reach on Step-Thru
Brakes
Tektro HD-M275
Drivetrain
Crankset
Pro Wheel CY10Y-NW, 30T, 170mm (XXS, XS, S), 175mm (M, L, XL)
Shifter
Shimano Deore SL-M4100
Bottom bracket
Cartridge, BSA Threaded
Chain
KMC X10
Rear derailleur
Shimano Deore RD-M5120 SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
46T (1x11/1x10-speed)
42T (2x11/2x10-speed)
Lower pulley min
42T
Model
RD-M5120-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
6061 Alloy, Internal Routing, Smooth Welds
Front suspension
SR Suntour XCM HLO
Wheels
Rims
Alex DP21 TRS
Tires
Maxxis Rekon DK60 2.25"
Rear hub
Alloy QR, 10x135mm QR, HG, 6 Bolt
Front hub
Alloy QR, 9x100mm QR, 6 Bolt

Geometry

Size XXS XS SM MD
a
Seat tube length
340,0
390,0
430,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
485,0
517,0
550,0
581,0
d
Head tube length
105,0
115,0
125,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
98,0
h
Wheelbase
1023,0
1057,0
1091,0
1125,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
49,0
49,0
49,0
44,0
k
Stack height
583,0
593,0
602,0
606,0
l
Reach
326,0
356,0
386,0
416,0
m
Standover height
579,0
607,0
623,0
664,0
x
Bottom bracket height
305,0
305,0
305,0
310,0
y
Front center
602,0
636,0
670,0
703,0
