Norco Storm 3 27.5 2021
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

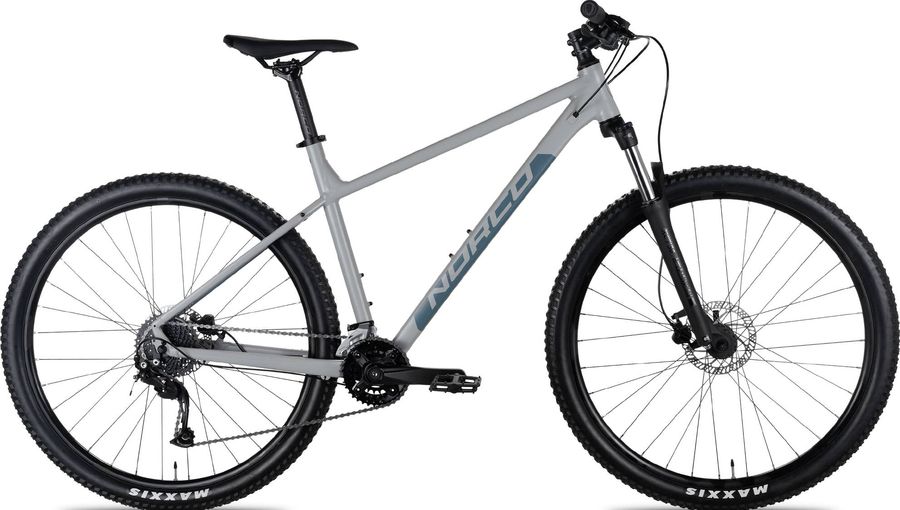

About the Norco Storm 3 27.5 2021
The Norco Storm 3 27.5 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 18 gears (2x9). Its features include internal routing e hydraulic disc brakes.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Norco
|
|---|---|
|
Pedals
|
VP Nylon Flat
|
|
Steam
|
Alloy 60mm, 31.8mm Clamp
|
|---|---|
|
Saddle
|
Norco XC
|
|
Headset
|
Zero Stack
|
|
Seatpost
|
Alloy 31.6mm
|
|
Handlebar
|
X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
|
|
Discs
|
Tektro 160mm
|
|
Brake lever
|
Tektro HD-M275, HD-M276 Short Reach on Step-Thru
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Prowheel ZEPHYR-501, 36/22T, 170mm (XXS, XS, S), 175mm (M, L, XL)
|
|---|---|
|
Shifter
|
Rear: Shimano Alivio SL-M3100, Front: Shimano Alivio SL-M3100
|
|
Bottom bracket
|
Cartridge, BSA Threaded
|
|
Front derailleur
|
Shimano Altus FD-M2020
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC Z99
|
|
Rear derailleur
|
Shimano Alivio RD-M3100
SGS
9s
|
|
|
|
|
Frame
|
6061 Alloy, Internal Routing, Smooth Welds
|
|---|---|
|
Front suspension
|
SR Suntour XCT 30 HLO
|
|
Rims
|
WTB SX19
|
|---|---|
|
Tires
|
Maxxis Rekon DK60 2.25"
|
|
Rear hub
|
Alloy QR, 10x135mm QR, HG, 6 Bolt
|
|
Front hub
|
Alloy QR, 9x100mm QR, 6 Bolt
|
Geometry
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
|
a
Seat tube length
|
340,0
|
390,0
|
430,0
|
470,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
485,0
|
517,0
|
550,0
|
581,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
98,0
|
98,0
|
98,0
|
98,0
|
|
h
Wheelbase
|
1023,0
|
1057,0
|
1091,0
|
1125,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
49,0
|
49,0
|
49,0
|
44,0
|
|
k
Stack height
|
583,0
|
593,0
|
602,0
|
606,0
|
|
l
Reach
|
326,0
|
356,0
|
386,0
|
416,0
|
|
m
Standover height
|
579,0
|
607,0
|
623,0
|
664,0
|
|
x
Bottom bracket height
|
305,0
|
305,0
|
305,0
|
310,0
|
|
y
Front center
|
602,0
|
636,0
|
670,0
|
703,0
|
